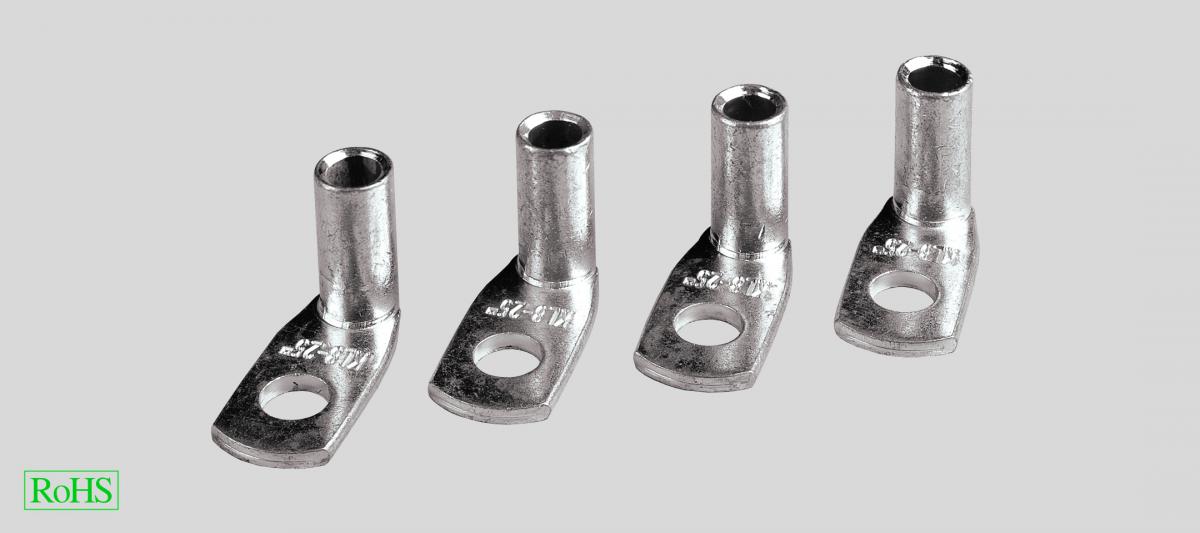

- Non-insulated tubular lugs in eye type design, 90° angled.
Ringform
|
Artikel-Nr. 90° |
Typ |
Querschnitt mm² |
a mm |
d mm |
b mm |
Gewicht kg / 1000 Stück |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
||||||||
|
90866 |
W 6-5 |
6,0 |
5,3 |
3,5 |
10,0 |
6,0 |
100 |
31,10 |
28,80 |
26,40 |
|
96303 |
W 6-6 |
6,0 |
6,4 |
3,5 |
12,0 |
5,9 |
100 |
31,10 |
28,80 |
26,40 |
|
90867 |
W 6-8 |
6,0 |
8,4 |
3,5 |
15,0 |
6,7 |
100 |
31,10 |
28,80 |
26,40 |
|
90868 |
W 6-10 |
6,0 |
10,5 |
3,5 |
17,0 |
7,2 |
100 |
33,10 |
30,60 |
28,10 |
|
90869 |
W 6-12 |
6,0 |
13,2 |
3,5 |
19,0 |
7,7 |
100 |
33,10 |
30,60 |
28,10 |
|
90939 |
W 10-5 |
10,0 |
5,3 |
4,5 |
12,0 |
6,0 |
100 |
44,30 |
41,00 |
37,70 |
|
96309 |
W 10-6 |
10,0 |
6,4 |
4,5 |
12,0 |
5,9 |
100 |
44,30 |
41,00 |
37,70 |
|
96908 |
W 10-8 |
10,0 |
8,4 |
4,5 |
15,0 |
6,7 |
100 |
44,30 |
41,00 |
37,70 |
|
90940 |
W 10-10 |
10,0 |
10,5 |
4,5 |
17,0 |
7,2 |
100 |
46,30 |
42,80 |
39,40 |
|
90941 |
W 10-12 |
10,0 |
13,2 |
4,5 |
19,0 |
7,6 |
100 |
46,30 |
42,80 |
39,40 |
|
90942 |
W 16-5 |
16,0 |
5,3 |
5,5 |
12,0 |
10,1 |
100 |
53,50 |
49,50 |
45,50 |
|
96308 |
W 16-6 |
16,0 |
6,4 |
5,5 |
12,0 |
10,0 |
100 |
53,50 |
49,50 |
45,50 |
|
96907 |
W 16-8 |
16,0 |
8,4 |
5,5 |
15,0 |
11,0 |
100 |
53,50 |
49,50 |
45,50 |
|
96310 |
W 16-10 |
16,0 |
10,5 |
5,5 |
17,0 |
11,7 |
100 |
55,40 |
51,20 |
47,10 |
|
90943 |
W 16-12 |
16,0 |
13,2 |
5,5 |
19,0 |
12,3 |
100 |
55,40 |
51,20 |
47,10 |
|
90944 |
W 25-5 |
25,0 |
5,3 |
7,0 |
14,0 |
13,4 |
100 |
85,70 |
79,30 |
72,80 |
|
98377 |
W 25-6 |
25,0 |
6,4 |
7,0 |
14,0 |
13,1 |
100 |
81,50 |
75,40 |
69,30 |
|
90945 |
W 25-8 |
25,0 |
8,4 |
7,0 |
16,0 |
14,7 |
100 |
81,50 |
75,40 |
69,30 |
|
90946 |
W 25-10 |
25,0 |
10,5 |
7,0 |
18,0 |
15,6 |
100 |
81,50 |
75,40 |
69,30 |
|
90947 |
W 25-12 |
25,0 |
13,2 |
7,0 |
19,0 |
16,0 |
100 |
81,50 |
75,40 |
69,30 |
|
90949 |
W 35-6 |
35,0 |
6,4 |
8,5 |
17,0 |
20,4 |
100 |
124,10 |
114,80 |
105,50 |
|
90950 |
W 35-8 |
35,0 |
8,4 |
8,5 |
17,0 |
22,8 |
100 |
124,10 |
114,80 |
105,50 |
|
96313 |
W 35-10 |
35,0 |
10,5 |
8,5 |
19,0 |
23,9 |
100 |
124,10 |
114,80 |
105,50 |
|
90951 |
W 35-12 |
35,0 |
13,2 |
8,5 |
21,0 |
25,4 |
100 |
124,10 |
114,80 |
105,50 |
|
90954 |
W 50-6 |
50,0 |
6,4 |
10,0 |
20,0 |
31,6 |
100 |
151,30 |
140,00 |
128,60 |
|
96314 |
W 50-8 |
50,0 |
8,4 |
10,0 |
20,0 |
33,8 |
100 |
151,30 |
140,00 |
128,60 |
|
90955 |
W 50-10 |
50,0 |
10,5 |
10,0 |
20,0 |
35,2 |
100 |
151,30 |
140,00 |
128,60 |
|
90956 |
W 50-12 |
50,0 |
13,2 |
10,0 |
23,0 |
38,0 |
100 |
151,30 |
140,00 |
128,60 |
|
90961 |
W 70-8 |
70,0 |
8,4 |
12,0 |
23,0 |
50,9 |
100 |
163,60 |
151,30 |
139,10 |
|
96315 |
W 70-10 |
70,0 |
10,5 |
12,0 |
23,0 |
53,4 |
100 |
163,60 |
151,30 |
139,10 |
|
96316 |
W 70-12 |
70,0 |
13,2 |
12,0 |
23,0 |
54,4 |
100 |
163,60 |
151,30 |
139,10 |
|
90963 |
W 70-16 |
70,0 |
17,0 |
12,0 |
26,0 |
58,5 |
100 |
163,60 |
151,30 |
139,10 |
|
90965 |
W 95-8 |
95,0 |
8,4 |
13,5 |
26,0 |
61,1 |
50 |
193,30 |
178,80 |
164,30 |
|
97672 |
W 95-10 |
95,0 |
10,5 |
13,5 |
26,0 |
62,7 |
50 |
193,30 |
178,80 |
164,30 |
|
90966 |
W 95-12 |
95,0 |
13,2 |
13,5 |
26,0 |
64,8 |
50 |
193,30 |
178,80 |
164,30 |
|
90970 |
W 120-8 |
120,0 |
8,4 |
15,0 |
28,0 |
66,9 |
50 |
237,10 |
219,30 |
201,50 |
|
90971 |
W 120-10 |
120,0 |
10,5 |
15,0 |
28,0 |
71,0 |
50 |
237,10 |
219,30 |
201,50 |
|
90972 |
W 120-12 |
120,0 |
13,2 |
15,0 |
28,0 |
72,3 |
50 |
237,10 |
219,30 |
201,50 |
|
90974 |
W 120-16 |
120,0 |
17,0 |
15,0 |
30,0 |
78,1 |
50 |
237,10 |
219,30 |
201,50 |
