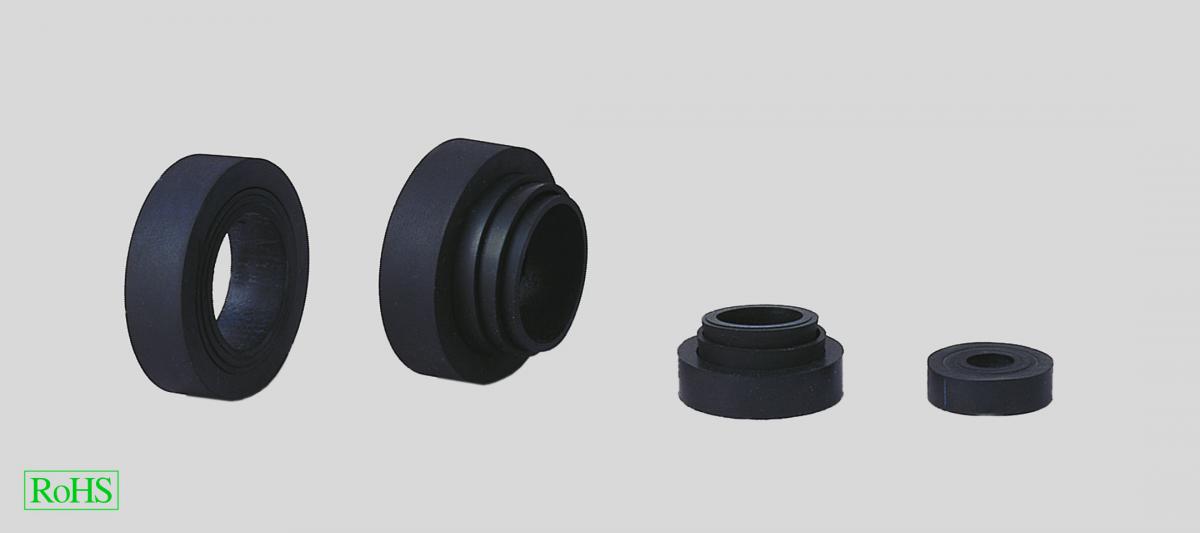

- Incision sealing rings for PG thread:
- Material: NR
- Temperature range: -40°C up to 90°C
- Incision sealing rings for universal cable inlet through large cable clamping areas.
- Plant and machine construction
- Robot construction
- Automation technology
- Vehicle construction and shipbuilding
- Rail technology
- Installation technology
- Control cabinet construction
метрическая резьба
|
Artikel-Nr. |
Größe |
Innen-Ø mm |
Außen-Ø mm |
Einschnitte mm |
Stärke mm |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
|||||||
|
94860 |
M12 x 1,5 |
5,0 |
10,7 |
- |
5,0 |
100 |
21,30 |
20,20 |
19,10 |
|
94861 |
M16 x 1,5 |
3,0 |
13,8 |
5,5/9 |
5,5 |
100 |
21,40 |
20,30 |
19,20 |
|
94863 |
M20 x 1,5 |
4,0 |
17,7 |
7/10/13 |
6,0 |
100 |
22,60 |
21,40 |
20,20 |
|
94865 |
M25 x 1,5 |
8,5 |
22,5 |
11/14/17 |
8,0 |
100 |
24,50 |
23,20 |
21,70 |
|
94866 |
M32 x 1,5 |
16,0 |
29,5 |
19/21/24 |
9,5 |
100 |
46,30 |
43,90 |
41,30 |
|
94867 |
M40 x 1,5 |
23,0 |
37,5 |
26/29/32 |
11,0 |
50 |
84,70 |
80,10 |
75,40 |
|
94868 |
M50 x 1,5 |
32,0 |
47,5 |
35/38/41 |
12,0 |
50 |
147,50 |
139,40 |
131,20 |
|
94869 |
M63 x 1,5 |
41,0 |
60,3 |
44/47/50 |
14,0 |
50 |
246,40 |
232,80 |
219,10 |
PG - резьба
|
Artikel-Nr. |
Größe |
Innen-Ø mm |
Außen-Ø mm |
Einschnitte mm |
Stärke mm |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
|||||||
|
96357 |
9 |
5,0 |
13,3 |
7,5/10 |
5,5 |
100 |
9,20 |
8,70 |
8,30 |
|
96358 |
11 |
7,5 |
16,5 |
10/12,5 |
6,0 |
100 |
8,50 |
8,10 |
7,70 |
|
96359 |
13,5 |
7,5 |
18,3 |
10/12,5 |
6,0 |
100 |
9,10 |
8,60 |
8,20 |
|
96360 |
16 |
7,5 |
20,4 |
10/12,5/15 |
7,0 |
100 |
11,00 |
10,50 |
9,90 |
|
96361 |
21 |
10,0 |
25,9 |
13/16/19 |
8,0 |
100 |
17,10 |
16,20 |
15,40 |
|
96362 |
29 |
18,0 |
34,7 |
21/24/27 |
9,5 |
100 |
35,30 |
33,50 |
31,80 |
|
96363 |
36 |
24,0 |
44,7 |
27/30/33 |
12,0 |
100 |
89,20 |
84,70 |
80,30 |
|
96364 |
42 |
30,0 |
51,7 |
33/36/39 |
14,0 |
50 |
162,90 |
154,80 |
146,60 |
|
96365 |
48 |
36,0 |
56,9 |
39/42/45 |
14,0 |
50 |
170,10 |
161,60 |
153,10 |
