PROFInet A RJ45 4P INDUSTRIAL IP20, соединительный кабель

DataSheet:

1db_802416_en.pdf

• Beschreibung
• Подробности
• Характерные особенности
• Поставки по дополнительному заказу

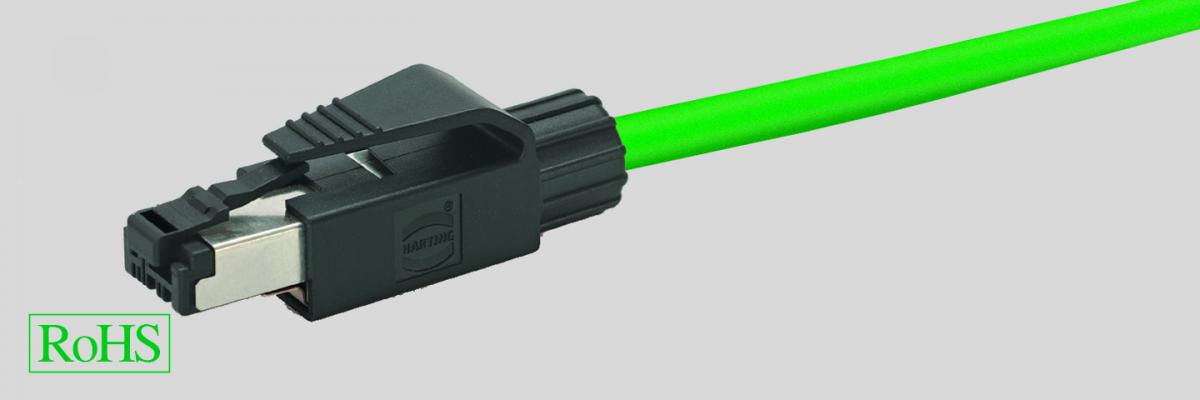

• Patch Cable RJ45 HARTING Industrial IP20, PROFInet A fixed installation

• Components of HELUKAT® CONNECTING SYSTEMS® to 100 MHz acc. Categorie 5, ISO 11801 1st Edition, EN 50173-3, EIA/TIA 568 B and IEC 60603-7. Support the PROFInet guideline V 1.8.

• Jumper cable for the connection between IP20 protected ethernet applications according ISO/IEC 11801 with RJ45 plugs. Usable for fixed installation cabling.

• We also can deliver other cable length, cross-over cables or other types of plugs.



Art.-Nr. Mantelfarbe Länge in Metern VPE 802416 grün 1,5 10 802417 grün 3,0 10 802418 grün 5,0 10 802419 grün 10,0 10 802420 grün 20,0 5 802421 grün 50,0 5 802422 grün 100,0 1
