- Соотнесение с сечениями в соотв. с DIN 46228: до 50 мм² согласно номинальному размеру и DIN-цветовому коду.

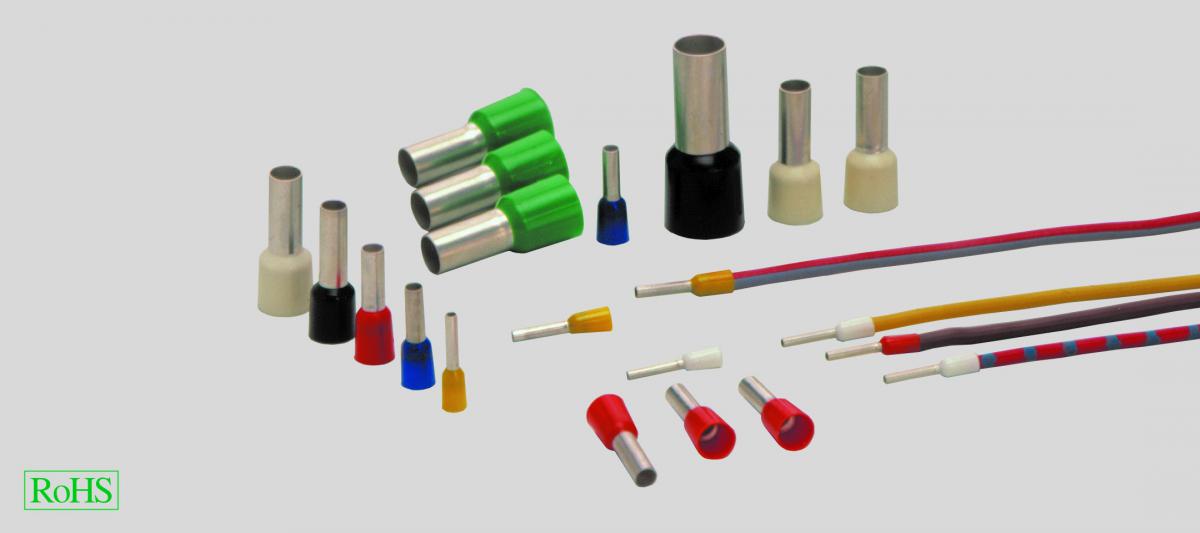

- Изолированные жильные гильзы препятствуют раскручиванию зачищенного проводника.
- Воронкообразный пластмассовый бортик позволяет легко надвинуть гильзу на проводник.
- В соответствии с цветовым кодом DIN-, ZF- и Telemecanique.
|
Artikel-Nr. |
Größe mm² |
Farbe |
Farbcode |
Gesamtlänge mm |
Stiftlänge mm |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|---|
|
bis 5000 |
5001 - 10000 |
10001 - 50000 |
|||||||
|
91850 |
0,14 / normal |
braun |
Telemecanique |
10,4 |
6,0 |
500 |
1,90 |
1,80 |
1,70 |
|
91851 |
0,14 / lang |
braun |
Telemecanique |
12,4 |
8,0 |
500 |
2,20 |
2,10 |
2,00 |
|
91852 |
0,25 / normal |
violett |
Telemecanique |
10,4 |
6,0 |
500 |
1,90 |
1,80 |
1,70 |
|
91853 |
0,25 / normal |
hellblau |
Z+F |
10,4 |
6,0 |
500 |
1,90 |
1,80 |
1,70 |
|
91854 |
0,25 / lang |
violett |
Telemecanique |
12,4 |
8,0 |
500 |
2,20 |
2,10 |
2,00 |
|
91855 |
0,25 / lang |
hellblau |
Z+F |
12,4 |
8,0 |
500 |
2,20 |
2,10 |
2,00 |
|
91856 |
0,34 / normal |
rosa |
Telemecanique |
10,4 |
6,0 |
500 |
1,90 |
1,80 |
1,70 |
|
91857 |
0,34 / normal |
türkis |
Z+F |
10,4 |
6,0 |
500 |
1,90 |
1,80 |
1,70 |
|
91858 |
0,34 / lang |
rosa |
Telemecanique |
12,4 |
8,0 |
500 |
2,20 |
2,10 |
2,00 |
|
91859 |
0,34 / lang |
türkis |
Z+F |
12,4 |
8,0 |
500 |
2,20 |
2,10 |
2,00 |
|
91860 |
0,5 / kurz |
weiß |
DIN |
12,0 |
6,0 |
500 |
1,50 |
1,40 |
1,30 |
|
91861 |
0,5 / kurz |
orange |
Z+F |
12,0 |
6,0 |
500 |
1,50 |
1,40 |
1,30 |
|
91350 |
0,5 / normal |
weiß |
DIN |
14,0 |
8,0 |
500 |
1,20 |
1,10 |
1,00 |
|
91383 |
0,5 / normal |
orange |
Z+F |
14,0 |
8,0 |
500 |
1,20 |
1,10 |
1,00 |
|
91862 |
0,5 / halblang |
weiß |
DIN |
16,0 |
10,0 |
500 |
1,80 |
1,70 |
1,60 |
|
91863 |
0,5 / halblang |
orange |
Z+F |
16,0 |
10,0 |
500 |
1,80 |
1,70 |
1,60 |
|
91864 |
0,75 / kurz |
hellblau |
Telemecanique |
12,4 |
6,0 |
500 |
1,50 |
1,40 |
1,30 |
|
91865 |
0,75 / kurz |
weiß |
Z+F |
12,4 |
6,0 |
500 |
1,50 |
1,40 |
1,30 |
|
94023 |
0,75 / kurz |
grau |
DIN |
12,4 |
6,0 |
500 |
1,50 |
1,40 |
1,30 |
|
91351 |
0,75 / normal |
hellblau |
Telemecanique |
14,6 |
8,0 |
500 |
1,20 |
1,10 |
1,00 |
|
91384 |
0,75 / normal |
weiß |
Z+F |
14,6 |
8,0 |
500 |
1,20 |
1,10 |
1,00 |
|
93030 |
0,75 / normal |
grau |
DIN |
14,6 |
8,0 |
500 |
1,20 |
1,10 |
1,00 |
|
91866 |
0,75 / halblang |
hellblau |
Telemecanique |
16,4 |
10,0 |
500 |
1,80 |
1,70 |
1,60 |
|
91867 |
0,75 / halblang |
weiß |
Z+F |
16,4 |
10,0 |
500 |
1,80 |
1,70 |
1,60 |
|
91868 |
0,75 / halblang |
grau |
DIN |
16,4 |
10,0 |
500 |
1,80 |
1,70 |
1,60 |
|
91869 |
0,75 / lang |
hellblau |
Telemecanique |
18,4 |
12,0 |
500 |
2,00 |
1,90 |
1,80 |
|
91870 |
0,75 / lang |
weiß |
Z+F |
18,4 |
12,0 |
500 |
2,00 |
1,90 |
1,80 |
|
91871 |
0,75 / lang |
grau |
DIN |
18,4 |
12,0 |
500 |
2,00 |
1,90 |
1,80 |
|
91872 |
1,0 / kurz |
rot |
DIN |
12,4 |
6,0 |
500 |
1,50 |
1,40 |
1,30 |
|
91873 |
1,0 / kurz |
gelb |
Z+F |
12,4 |
6,0 |
500 |
1,50 |
1,40 |
1,30 |
|
91352 |
1,0 / normal |
rot |
DIN |
14,6 |
8,0 |
500 |
1,20 |
1,10 |
1,00 |
|
91385 |
1,0 / normal |
gelb |
Z+F |
14,6 |
8,0 |
500 |
1,20 |
1,10 |
1,00 |
|
91874 |
1,0 / halblang |
rot |
DIN |
16,4 |
10,0 |
500 |
1,80 |
1,70 |
1,60 |
|
91875 |
1,0 / halblang |
gelb |
Z+F |
16,4 |
10,0 |
500 |
1,80 |
1,70 |
1,60 |
|
91876 |
1,0 / lang |
rot |
DIN |
18,4 |
12,0 |
500 |
2,20 |
2,10 |
2,00 |
|
91877 |
1,0 / lang |
gelb |
Z+F |
18,4 |
12,0 |
500 |
2,20 |
2,10 |
2,00 |
|
91353 |
1,5 / normal |
schwarz |
DIN |
14,6 |
8,0 |
500 |
1,10 |
1,00 |
0,90 |
|
91386 |
1,5 / normal |
rot |
Z+F |
14,6 |
8,0 |
500 |
1,10 |
1,00 |
0,90 |
|
91878 |
1,5 / halblang |
schwarz |
DIN |
16,4 |
10,0 |
500 |
1,60 |
1,50 |
1,40 |
|
91879 |
1,5 / halblang |
rot |
Z+F |
16,4 |
10,0 |
500 |
1,60 |
1,50 |
1,40 |
|
91880 |
1,5 / lang |
schwarz |
DIN |
24,4 |
18,0 |
500 |
2,00 |
1,90 |
1,80 |
|
91881 |
1,5 / lang |
rot |
Z+F |
24,4 |
18,0 |
500 |
2,00 |
1,90 |
1,80 |
|
91354 |
2,5 / normal |
grau |
Telemecanique |
15,2 |
8,0 |
500 |
1,60 |
1,50 |
1,40 |
|
91387 |
2,5 / normal |
blau |
DIN |
15,2 |
8,0 |
500 |
1,60 |
1,50 |
1,40 |
|
91882 |
2,5 / halblang |
grau |
Telemecanique |
19,0 |
12,0 |
500 |
2,00 |
1,90 |
1,80 |
|
91883 |
2,5 / halblang |
blau |
DIN |
19,0 |
12,0 |
500 |
2,00 |
1,90 |
1,80 |
|
91884 |
2,5 / lang |
grau |
Telemecanique |
25,0 |
18,0 |
500 |
2,20 |
2,10 |
2,00 |
|
91885 |
2,5 / lang |
blau |
DIN |
25,0 |
18,0 |
500 |
2,20 |
2,10 |
2,00 |
|
91355 |
4,0 / normal |
orange |
Telemecanique |
16,5 |
10,0 |
500 |
2,00 |
1,90 |
1,80 |
|
91388 |
4,0 / normal |
grau |
DIN |
16,5 |
10,0 |
500 |
2,00 |
1,90 |
1,80 |
|
91886 |
4,0 / halblang |
orange |
Telemecanique |
19,5 |
12,0 |
500 |
2,20 |
2,10 |
2,00 |
|
91887 |
4,0 / halblang |
grau |
DIN |
19,5 |
12,0 |
500 |
2,20 |
2,10 |
2,00 |
|
91888 |
4,0 / lang |
orange |
Telemecanique |
25,5 |
18,0 |
500 |
2,90 |
2,70 |
2,50 |
|
91889 |
4,0 / lang |
grau |
DIN |
25,5 |
18,0 |
500 |
2,90 |
2,70 |
2,50 |
|
91356 |
6,0 / normal |
grün |
Telemecanique |
20,0 |
12,0 |
100 |
2,70 |
2,50 |
2,30 |
|
91389 |
6,0 / normal |
schwarz |
Z+F |
20,0 |
12,0 |
100 |
2,70 |
2,50 |
2,30 |
|
93031 |
6,0 / normal |
gelb |
DIN |
20,0 |
12,0 |
100 |
2,70 |
2,50 |
2,30 |
|
91890 |
6,0 / lang |
grün |
Telemecanique |
26,0 |
18,0 |
100 |
3,80 |
3,60 |
3,40 |
|
91891 |
6,0 / lang |
schwarz |
Z+F |
26,0 |
18,0 |
100 |
3,80 |
3,60 |
3,40 |
|
91892 |
6,0 / lang |
gelb |
DIN |
26,0 |
18,0 |
100 |
3,80 |
3,60 |
3,40 |
|
91357 |
10,0 / normal |
braun |
Telemecanique |
21,5 |
12,0 |
100 |
3,60 |
3,40 |
3,20 |
|
91390 |
10,0 / normal |
elfenbein |
Z+F |
21,5 |
12,0 |
100 |
3,60 |
3,40 |
3,20 |
|
93032 |
10,0 / normal |
rot |
DIN |
21,5 |
12,0 |
100 |
3,60 |
3,40 |
3,20 |
|
91893 |
10,0 / lang |
braun |
Telemecanique |
27,5 |
18,0 |
100 |
4,40 |
4,20 |
4,00 |
|
91894 |
10,0 / lang |
elfenbein |
Z+F |
27,5 |
18,0 |
100 |
4,40 |
4,20 |
4,00 |
|
94024 |
10,0 / lang |
rot |
DIN |
27,5 |
18,0 |
100 |
4,40 |
4,20 |
4,00 |
|
91895 |
16,0 / normal |
elfenbein |
Telemecanique |
22,2 |
12,0 |
100 |
4,40 |
4,20 |
4,00 |
|
91896 |
16,0 / normal |
grün |
Z+F |
22,2 |
12,0 |
100 |
4,40 |
4,20 |
4,00 |
|
91897 |
16,0 / normal |
blau |
DIN |
22,2 |
12,0 |
100 |
4,40 |
4,20 |
4,00 |
|
91898 |
16,0 / lang |
elfenbein |
Telemecanique |
28,2 |
18,0 |
100 |
5,10 |
4,80 |
4,50 |
|
91899 |
16,0 / lang |
grün |
Z+F |
28,2 |
18,0 |
100 |
5,10 |
4,80 |
4,50 |
|
91900 |
16,0 / lang |
blau |
DIN |
28,2 |
18,0 |
100 |
5,10 |
4,80 |
4,50 |
|
91359 |
25,0 / normal |
schwarz |
Telemecanique |
29,0 |
16,0 |
50 |
6,30 |
6,00 |
5,70 |
|
91392 |
25,0 / normal |
braun |
Z+F |
29,0 |
16,0 |
50 |
6,30 |
6,00 |
5,70 |
|
93034 |
25,0 / normal |
gelb |
DIN |
29,0 |
16,0 |
50 |
6,30 |
6,00 |
5,70 |
|
91901 |
25,0 / lang |
schwarz |
Telemecanique |
35,0 |
22,0 |
50 |
7,30 |
6,90 |
6,50 |
|
91902 |
25,0 / lang |
braun |
Z+F |
35,0 |
22,0 |
50 |
7,30 |
6,90 |
6,50 |
|
91903 |
25,0 / lang |
gelb |
DIN |
35,0 |
22,0 |
50 |
7,30 |
6,90 |
6,50 |
|
91393 |
35,0 / normal |
rot |
DIN |
30,0 |
16,0 |
50 |
7,60 |
7,20 |
6,80 |
|
91394 |
35,0 / normal |
beige |
Z+F |
30,0 |
16,0 |
50 |
7,60 |
7,20 |
6,80 |
|
91904 |
35,0 / lang |
rot |
DIN |
39,0 |
25,0 |
50 |
9,90 |
9,40 |
8,90 |
|
91905 |
35,0 / lang |
beige |
Z+F |
39,0 |
25,0 |
50 |
9,90 |
9,40 |
8,90 |
|
91395 |
50,0 / normal |
blau |
DIN |
36,4 |
20,0 |
50 |
11,00 |
10,50 |
10,00 |
|
91396 |
50,0 / normal |
oliv |
Z+F |
36,4 |
20,0 |
50 |
11,00 |
10,50 |
10,00 |
|
91906 |
50,0 / lang |
blau |
DIN |
41,0 |
25,0 |
50 |
13,10 |
12,50 |
11,90 |
|
91907 |
50,0 / lang |
oliv |
Z+F |
41,0 |
25,0 |
50 |
13,10 |
12,50 |
11,90 |
|
91908 |
70,0 / normal |
gelb |
DIN |
37,0 |
21,0 |
25 |
55,20 |
52,70 |
50,10 |
|
91397 |
70,0 / lang |
gelb |
DIN |
43,0 |
27,0 |
25 |
55,20 |
52,70 |
50,10 |
|
91909 |
95,0 / normal |
rot |
DIN |
44,0 |
25,0 |
25 |
60,40 |
57,70 |
54,90 |
|
91910 |
120,0 / normal |
blau |
DIN |
48,0 |
27,0 |
25 |
72,80 |
69,50 |
66,20 |
|
91911 |
150,0 / normal |
gelb |
DIN |
58,0 |
32,0 |
25 |
97,10 |
92,70 |
88,20 |
