DataSheet:

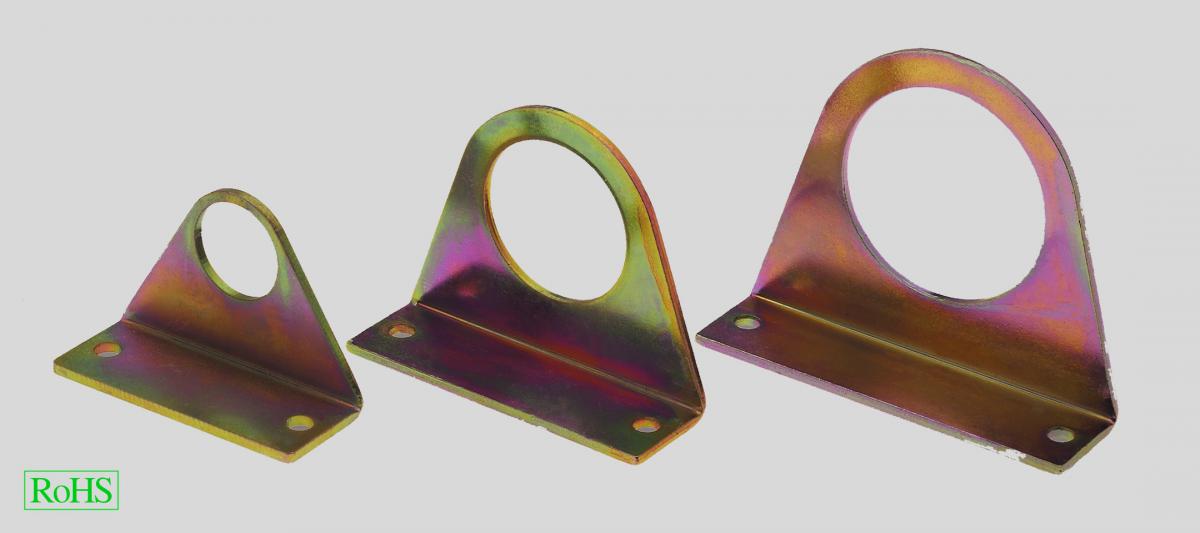

- Mounting bracket with penetration and two fastening bores.
- For mounting in a door or door elements, as earthing connection and also to equalise potentials in metallic glands.
- Plant and machine construction
- Robot construction
- Automation technology
- Vehicle construction and shipbuilding
- Rail technology
- Installation technology
- Control cabinet construction
PG - резьба
|
Artikel-Nr. |
Größe |
Innen-Ø mm |
Bohrung mm |
Bohrungs- mm |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
||||||
|
93715 |
16 |
23,0 |
4,5 |
40 |
25 |
216,80 |
206,40 |
196,00 |
|
93716 |
21 |
29,0 |
4,5 |
50 |
25 |
222,80 |
212,20 |
201,60 |
|
93717 |
29 |
37,5 |
4,5 |
60 |
25 |
239,20 |
227,90 |
216,50 |
|
93718 |
36 |
47,5 |
4,5 |
70 |
25 |
249,20 |
237,30 |
225,40 |
|
93719 |
48 |
60,0 |
4,5 |
80 |
25 |
282,00 |
268,60 |
255,10 |
метрическая резьба
|
Artikel-Nr. |
Größe |
Innen-Ø mm |
Bohrung mm |
Bohrungs- mm |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
||||||
|
93720 |
M16 x 1,5 |
17,0 |
4,5 |
40 |
25 |
230,10 |
219,20 |
208,20 |
|
93721 |
M20 x 1,5 |
21,0 |
4,5 |
40 |
25 |
337,20 |
320,30 |
303,50 |
|
93722 |
M25 x 1,5 |
26,0 |
4,5 |
50 |
25 |
389,40 |
369,90 |
350,50 |
|
93723 |
M32 x 1,5 |
33,0 |
4,5 |
60 |
25 |
264,90 |
252,30 |
239,70 |
|
93724 |
M40 x 1,5 |
41,0 |
4,5 |
70 |
25 |
272,30 |
259,30 |
246,30 |
|
93725 |
M50 x 1,5 |
51,0 |
4,5 |
80 |
25 |
302,20 |
287,90 |
273,50 |
