- Modular connector system category 6EA 500 MHz (10 GBit) and Category 6/ Class E 250MHz (1 Gbit)
- As floor distributor in applications of digital and analog image, data and voice transmission.
- Connection Technics Office
- Modular system components:
- 802377: up to 500 MHz (10 GBit Ethernet) according Category 6EA EIA/TIA 568-B.2-10, IEC 60603-7-51, ISO/IEC 11801 (Amendment 1 2008-4), ISO/IEC TR-24750 and EN 55022 (EMV)
- 802916: up to 250 MHz (GBit Ethernet) according Category 6 EIA/TIA 568-C.2 (2009-08), ISO/IEC 11801 (Amendment AMD2, 2009-04), EN 50173-1 (2007-12) and EN 55022 (EMV)
- The system consists of socket (jack with dust protection and integrated strain relief) panel with a maximum of 24 ports; data socket (max. 3x) either UP or AP.
|
Art.-Nr. |
Bezeichnung |
|---|---|
|
802377 |

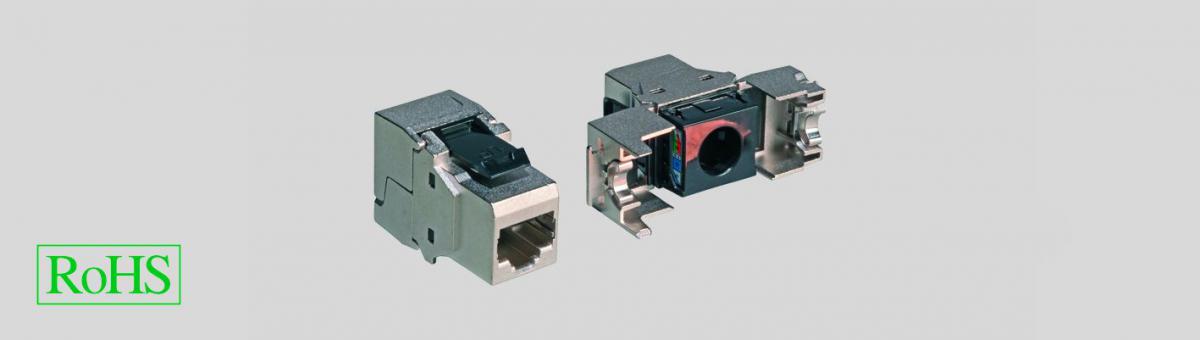

Keystone Jack Kat.6EA 500MHz für Keystonesystems HELUKAT |
|
802985 |
UP-Dose leer 1-Port leer RAL 9010 für Modularsystem HELUKAT |
|
802378 |
UP-Dose leer 2-Port leer RAL 9010 für Modularsystem HELUKAT |
|
802916 |
Keystone Jack Kat.6/ Klasse E 250MHz für Keystonesystems HELUKAT |
|
802986 |
UP-Dose leer 3-Port leer RAL 9010 für Modularsystem HELUKAT |
|
802988 |
Bodentank-Rahmenset 3x3-Port leer schwarz für Modularsystem HELUKAT |
|
804286 |
Staubschutzkappe schwarz für Keystonesystems HELUKAT |
|
802990 |
Staubschutzkappe grau für Keystonesystems HELUKAT |
|
802376 |
Patchpanel leer 19 1HE für Keystonesystem HELUKAT |
|
802987 |
Bodentank-Rahmenset 2x3-Port leer schwarz für Modularsystem HELUKAT |
