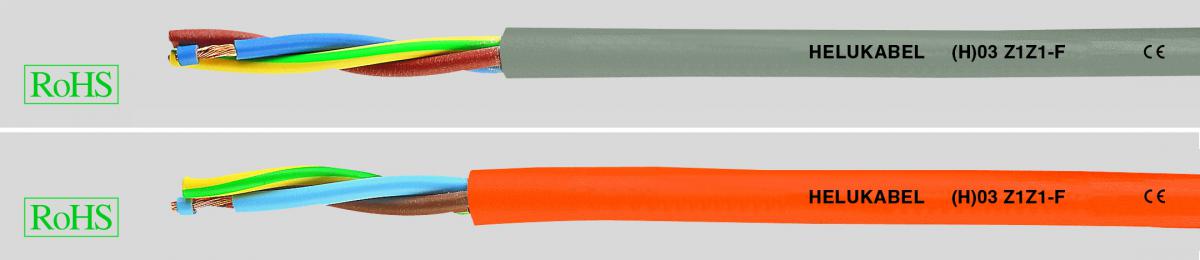

(H)03 Z1Z1-F - безгалогеновый, с разметкой метража
-
flexible halogen-free control cable
-
adapted to DIN VDE 0285-525-3-11/ DIN EN 50525-3-11
-
Temperature range
-
flexing -5°C to +70°C
-
fixed installation -40°C to +70°C
-
Nominal voltage U0/U 300/300 V
-
Test voltage 2000 V
-
Breakdown voltage min. 4000 V
-
Minimum bending radius7,5x cable Ø
-
Radiation resistance up to 20x106 cJ/kg (up to 20 Mrad)
-
Bare copper, fine wire conductor, bunch
-
stranded to DIN VDE 0295 cl.5,
-
BS 6360 cl.5, IEC 60228 cl.5
-
Insulating sheath thermoplastic
-
compound
-
Core identification acc. to DIN VDE 0293-308
-
GN-YE conductor, 3 cores and above
-
Core stranded with optimal lay-length
-
Outer sheath, thermoplastic compound
-
Sheath colour by request
-
with meter marking
-
Tests
-
Tested for flame retardation
-
acc. to DIN VDE 0482-332-1-2,
-
DIN EN 60332-1-2, IEC 60332-1 (equivalent
-
DIN VDE 0472 part 804 test method B)
-
Smoke density acc. to DIN VDE 0482-1034-1+2,
-
DIN EN 61034-1+2, IEC 61034-1+2
-
Halogen-free to DIN VDE 0285-525-1/
-
DIN EN 50525-1
-
The materials used in manufacture are
-
cadmium-free and contain no silicone
-
and free from substances harmful to
-
the wetting properties of lacquers
-
G = with green-yellow conductor
-
x = without green-yellow conductor
-
AWG sizes are approximate equivalent values. The actual cross-section is in mm².
-
1 = RAL 9003, white
-
2 = RAL 5015, blue
-
3 = RAL 6018, green
-
4 = RAL 8003, brown
-
5 = RAL 1021, yellow
-
6 = RAL 3000, red
-
7 = RAL 2003, orange
-
8 = RAL 4005, violet
-
9 = RAL 7001/7032, grey
-
Please add the individual part no. for order
-
with the identification colour code.
-
Further colours on request.
-
Colour code:
-
0 = RAL 9005, black
-
These cables may be used when halogen-free, low smoke and corrosive gas properties are required in case of fire. For low mechanical demands in the house, kitchen and office, for small equipment such as, for example, office machines, radios, table and stranded lamps.
-
Not suitable for:
-
Cooking and heating equipment, use in high temperature areas (for example, in lighting equipment), outside use, industrial use or idustrial electrical tools, cables with a nominal cross-section of 0,75 mm² comply with the same recommendations as for cable (H)05Z1Z1-F.
-
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
Art.-Nr.
|
Aderzahl x
Nennquer-
schnitt mm²
|
Außen-Ø
ca. mm
|
Cu-Zahl
kg / km
|
Gewicht
ca. kg / km
|
Preis
EUR / 100m
Cu 150,-
|
|
32330
|
2 x 0,5
|
5,0
|
9,6
|
39,0
|
100,00
|
|
32331
|
2 x 0,5
|
5,0
|
9,6
|
39,0
|
100,00
|
|
32332
|
2 x 0,5
|
5,0
|
9,6
|
39,0
|
100,00
|
|
32333
|
2 x 0,5
|
5,0
|
9,6
|
39,0
|
100,00
|
|
32334
|
2 x 0,5
|
5,0
|
9,6
|
39,0
|
100,00
|
|
32335
|
2 x 0,5
|
5,0
|
9,6
|
39,0
|
100,00
|
|
32336
|
2 x 0,5
|
5,0
|
9,6
|
39,0
|
100,00
|
|
32337
|
2 x 0,5
|
5,0
|
9,6
|
39,0
|
100,00
|
|
32338
|
2 x 0,5
|
5,0
|
9,6
|
39,0
|
100,00
|
|
32339
|
2 x 0,5
|
5,0
|
9,6
|
39,0
|
100,00
|
|
32340
|
3 G 0,5
|
5,3
|
14,4
|
46,0
|
125,00
|
|
32341
|
3 G 0,5
|
5,3
|
14,4
|
46,0
|
125,00
|
|
32342
|
3 G 0,5
|
5,3
|
14,4
|
46,0
|
125,00
|
|
32343
|
3 G 0,5
|
5,3
|
14,4
|
46,0
|
125,00
|
|
32344
|
3 G 0,5
|
5,3
|
14,4
|
46,0
|
125,00
|
|
32345
|
3 G 0,5
|
5,3
|
14,4
|
46,0
|
125,00
|
|
32346
|
3 G 0,5
|
5,3
|
14,4
|
46,0
|
125,00
|
|
32347
|
3 G 0,5
|
5,3
|
14,4
|
46,0
|
125,00
|
|
32348
|
3 G 0,5
|
5,3
|
14,4
|
46,0
|
125,00
|
|
32349
|
3 G 0,5
|
5,3
|
14,4
|
46,0
|
125,00
|
|
32350
|
4 G 0,5
|
5,8
|
19,2
|
56,0
|
155,00
|
|
32351
|
4 G 0,5
|
5,8
|
19,2
|
56,0
|
155,00
|
|
32352
|
4 G 0,5
|
5,8
|
19,2
|
56,0
|
155,00
|
|
32353
|
4 G 0,5
|
5,8
|
19,2
|
56,0
|
155,00
|
|
32354
|
4 G 0,5
|
5,8
|
19,2
|
56,0
|
155,00
|
|
32355
|
4 G 0,5
|
5,8
|
19,2
|
56,0
|
155,00
|
|
32356
|
4 G 0,5
|
5,8
|
19,2
|
56,0
|
155,00
|
|
32357
|
4 G 0,5
|
5,8
|
19,2
|
56,0
|
155,00
|
|
32358
|
4 G 0,5
|
5,8
|
19,2
|
56,0
|
155,00
|
|
32359
|
4 G 0,5
|
5,8
|
19,2
|
56,0
|
155,00
|
|
32360
|
2 x 0,75
|
5,4
|
14,4
|
47,0
|
104,00
|
|
32361
|
2 x 0,75
|
5,4
|
14,4
|
47,0
|
104,00
|
|
32362
|
2 x 0,75
|
5,4
|
14,4
|
47,0
|
104,00
|
|
32363
|
2 x 0,75
|
5,4
|
14,4
|
47,0
|
104,00
|
|
32364
|
2 x 0,75
|
5,4
|
14,4
|
47,0
|
104,00
|
|
32365
|
2 x 0,75
|
5,4
|
14,4
|
47,0
|
104,00
|
|
32366
|
2 x 0,75
|
5,4
|
14,4
|
47,0
|
104,00
|
|
32367
|
2 x 0,75
|
5,4
|
14,4
|
47,0
|
104,00
|
|
32368
|
2 x 0,75
|
5,4
|
14,4
|
47,0
|
104,00
|
|
32369
|
2 x 0,75
|
5,4
|
14,4
|
47,0
|
104,00
|
|
32370
|
3 G 0,75
|
5,7
|
21,6
|
55,0
|
130,00
|
|
32371
|
3 G 0,75
|
5,7
|
21,6
|
55,0
|
130,00
|
|
32372
|
3 G 0,75
|
5,7
|
21,6
|
55,0
|
130,00
|
|
32373
|
3 G 0,75
|
5,7
|
21,6
|
55,0
|
130,00
|
|
32374
|
3 G 0,75
|
5,7
|
21,6
|
55,0
|
130,00
|
|
32375
|
3 G 0,75
|
5,7
|
21,6
|
55,0
|
130,00
|
|
32376
|
3 G 0,75
|
5,7
|
21,6
|
55,0
|
130,00
|
|
32377
|
3 G 0,75
|
5,7
|
21,6
|
55,0
|
130,00
|
|
32378
|
3 G 0,75
|
5,7
|
21,6
|
55,0
|
130,00
|
|
32379
|
3 G 0,75
|
5,7
|
21,6
|
55,0
|
130,00
|
|
32380
|
4 G 0,75
|
6,3
|
29,0
|
69,0
|
161,00
|
|
32381
|
4 G 0,75
|
6,3
|
29,0
|
69,0
|
161,00
|
|
32382
|
4 G 0,75
|
6,3
|
29,0
|
69,0
|
161,00
|
|
32383
|
4 G 0,75
|
6,3
|
29,0
|
69,0
|
161,00
|
|
32384
|
4 G 0,75
|
6,3
|
29,0
|
69,0
|
161,00
|
|
32385
|
4 G 0,75
|
6,3
|
29,0
|
69,0
|
161,00
|
|
32386
|
4 G 0,75
|
6,3
|
29,0
|
69,0
|
161,00
|
|
32387
|
4 G 0,75
|
6,3
|
29,0
|
69,0
|
161,00
|
|
32388
|
4 G 0,75
|
6,3
|
29,0
|
69,0
|
161,00
|
|
32389
|
4 G 0,75
|
6,3
|
29,0
|
69,0
|
161,00
|
|
