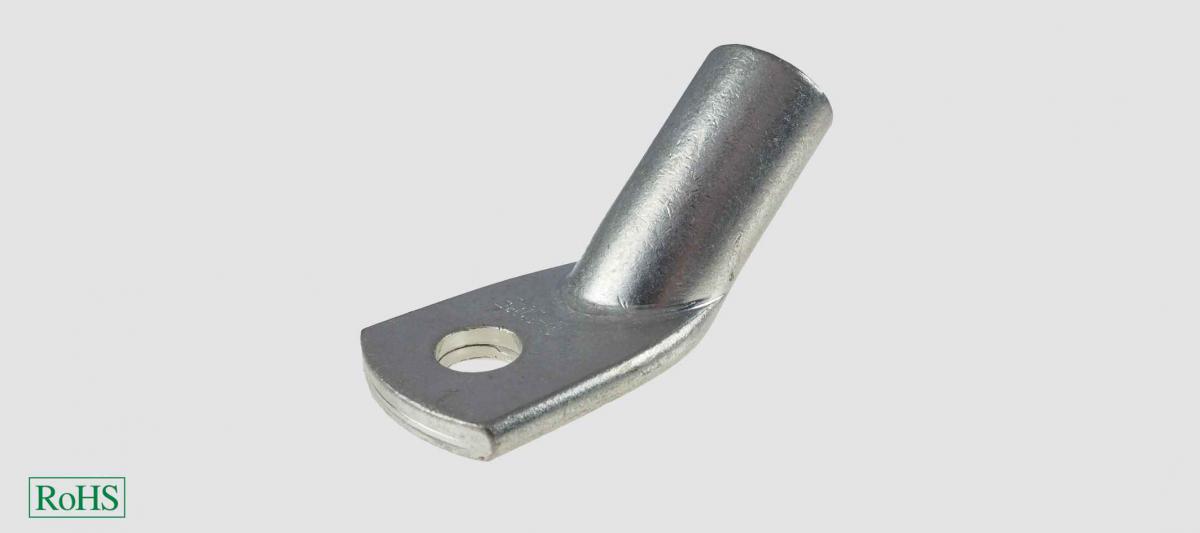

- Tubular cable lug angled HELU-S-RK-45-CU-UL
- Non-insulated tubular cable lugs in eye type design, 45° angled.
Ringform
|
Artikel-Nr. 45° |
Typ |
Querschnitt mm² |
a mm |
d mm |
b mm |
Gewicht kg / 1000 Stück |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
||||||||
|
907597 |
HELU-S-RK-45-CU-UL 10-5 |
10,0 |
5,3 |
4,5 |
12,0 |
5,5 |
100 |
42,70 |
39,70 |
30,50 |
|
907598 |
HELU-S-RK-45-CU-UL 10-6 |
10,0 |
6,4 |
4,5 |
12,0 |
5,8 |
100 |
38,50 |
35,80 |
27,50 |
|
907599 |
HELU-S-RK-45-CU-UL 10-8 |
10,0 |
8,4 |
4,5 |
15,0 |
6,5 |
100 |
42,70 |
39,70 |
30,50 |
|
907601 |
HELU-S-RK-45-CU-UL 16-5 |
16,0 |
5,3 |
5,5 |
12,0 |
9,5 |
100 |
52,20 |
48,50 |
37,30 |
|
907467 |
HELU-S-RK-45-CU-UL 16-6 |
16,0 |
6,4 |
5,5 |
12,0 |
10,2 |
100 |
52,20 |
48,50 |
37,30 |
|
907468 |
HELU-S-RK-45-CU-UL 16-8 |
16,0 |
8,4 |
5,5 |
15,0 |
11,7 |
100 |
48,50 |
45,10 |
34,70 |
|
907469 |
HELU-S-RK-45-CU-UL 16-10 |
16,0 |
10,5 |
5,5 |
18,0 |
11,7 |
100 |
52,20 |
48,50 |
37,30 |
|
907470 |
HELU-S-RK-45-CU-UL 25-6 |
25,0 |
6,4 |
7,0 |
15,0 |
13,9 |
100 |
78,10 |
72,50 |
55,80 |
|
907471 |
HELU-S-RK-45-CU-UL 25-8 |
25,0 |
8,4 |
7,0 |
16,0 |
15,1 |
100 |
71,80 |
66,70 |
51,30 |
|
907472 |
HELU-S-RK-45-CU-UL 25-10 |
25,0 |
10,5 |
7,0 |
18,0 |
16,6 |
100 |
78,10 |
72,50 |
55,80 |
|
907473 |
HELU-S-RK-45-CU-UL 25-12 |
25,0 |
13,0 |
7,0 |
20,0 |
17,0 |
100 |
81,50 |
75,70 |
58,20 |
|
907474 |
HELU-S-RK-45-CU-UL 35-6 |
35,0 |
6,4 |
8,5 |
17,0 |
21,7 |
50 |
99,90 |
92,80 |
71,40 |
|
907475 |
HELU-S-RK-45-CU-UL 35-8 |
35,0 |
8,4 |
8,5 |
17,0 |
22,3 |
50 |
92,50 |
85,90 |
66,10 |
|
907476 |
HELU-S-RK-45-CU-UL 35-10 |
35,0 |
10,5 |
8,5 |
20,0 |
23,4 |
50 |
99,90 |
92,80 |
71,40 |
|
907477 |
HELU-S-RK-45-CU-UL 35-12 |
35,0 |
13,0 |
8,5 |
22,0 |
24,0 |
50 |
99,90 |
92,80 |
71,40 |
|
907479 |
HELU-S-RK-45-CU-UL 50-8 |
50,0 |
8,4 |
10,0 |
20,0 |
33,4 |
50 |
141,50 |
131,40 |
101,10 |
|
907480 |
HELU-S-RK-45-CU-UL 50-10 |
50,0 |
10,5 |
10,0 |
20,0 |
36,5 |
50 |
129,90 |
120,60 |
92,80 |
|
907481 |
HELU-S-RK-45-CU-UL 50-12 |
50,0 |
13,0 |
10,0 |
23,0 |
36,5 |
50 |
141,50 |
131,40 |
101,10 |
|
907482 |
HELU-S-RK-45-CU-UL 70-8 |
70,0 |
8,4 |
12,0 |
24,0 |
49,0 |
25 |
164,90 |
153,10 |
117,80 |
|
907483 |
HELU-S-RK-45-CU-UL 70-10 |
70,0 |
10,5 |
12,0 |
24,0 |
52,3 |
25 |
151,00 |
140,20 |
107,80 |
|
907484 |
HELU-S-RK-45-CU-UL 70-12 |
70,0 |
13,0 |
12,0 |
24,0 |
53,4 |
25 |
164,90 |
153,10 |
117,80 |
|
907485 |
HELU-S-RK-45-CU-UL 95-8 |
95,0 |
8,4 |
13,5 |
26,0 |
61,8 |
25 |
194,00 |
180,20 |
138,60 |
|
907486 |
HELU-S-RK-45-CU-UL 95-10 |
95,0 |
10,5 |
13,5 |
26,0 |
62,0 |
25 |
194,00 |
180,20 |
138,60 |
|
907487 |
HELU-S-RK-45-CU-UL 95-12 |
95,0 |
13,0 |
13,5 |
26,0 |
62,0 |
25 |
177,40 |
164,70 |
126,70 |
|
907489 |
HELU-S-RK-45-CU-UL 120-8 |
120,0 |
8,4 |
15,0 |
29,0 |
78,0 |
25 |
241,00 |
223,80 |
172,10 |
|
907490 |
HELU-S-RK-45-CU-UL 120-10 |
120,0 |
10,5 |
15,0 |
29,0 |
89,0 |
25 |
241,00 |
223,80 |
172,10 |
|
907491 |
HELU-S-RK-45-CU-UL 120-12 |
120,0 |
13,0 |
15,0 |
29,0 |
89,1 |
25 |
220,10 |
204,40 |
157,20 |
|
907492 |
HELU-S-RK-45-CU-UL 120-16 |
120,0 |
17,0 |
15,0 |
30,0 |
93,1 |
25 |
241,00 |
223,80 |
172,10 |
|
907494 |
HELU-S-RK-45-CU-UL 150-10 |
150,0 |
10,5 |
16,8 |
31,0 |
98,0 |
25 |
303,30 |
281,60 |
216,60 |
|
907495 |
HELU-S-RK-45-CU-UL 150-12 |
150,0 |
13,0 |
16,8 |
31,0 |
96,8 |
25 |
277,30 |
257,50 |
198,10 |
|
907496 |
HELU-S-RK-45-CU-UL 150-16 |
150,0 |
17,0 |
16,8 |
31,0 |
101,2 |
25 |
303,30 |
281,60 |
216,60 |
|
907498 |
HELU-S-RK-45-CU-UL 185-10 |
185,0 |
10,5 |
19,0 |
35,0 |
123,5 |
20 |
341,50 |
317,10 |
244,00 |
|
907499 |
HELU-S-RK-45-CU-UL 185-12 |
185,0 |
13,0 |
19,0 |
35,0 |
122,4 |
20 |
341,50 |
317,10 |
244,00 |
|
907500 |
HELU-S-RK-45-CU-UL 185-16 |
185,0 |
17,0 |
19,0 |
35,0 |
128,4 |
20 |
336,50 |
312,40 |
240,30 |
|
907501 |
HELU-S-RK-45-CU-UL 185-20 |
185,0 |
21,0 |
19,0 |
35,0 |
139,9 |
20 |
341,50 |
317,10 |
244,00 |
|
907502 |
HELU-S-RK-45-CU-UL 240-12 |
240,0 |
13,0 |
21,0 |
38,0 |
154,6 |
15 |
433,80 |
402,80 |
309,90 |
|
907503 |
HELU-S-RK-45-CU-UL 240-16 |
240,0 |
17,0 |
21,0 |
38,0 |
165,1 |
15 |
411,20 |
381,80 |
293,70 |
|
907504 |
HELU-S-RK-45-CU-UL 240-20 |
240,0 |
21,0 |
21,0 |
38,0 |
170,4 |
15 |
433,80 |
402,80 |
309,90 |
