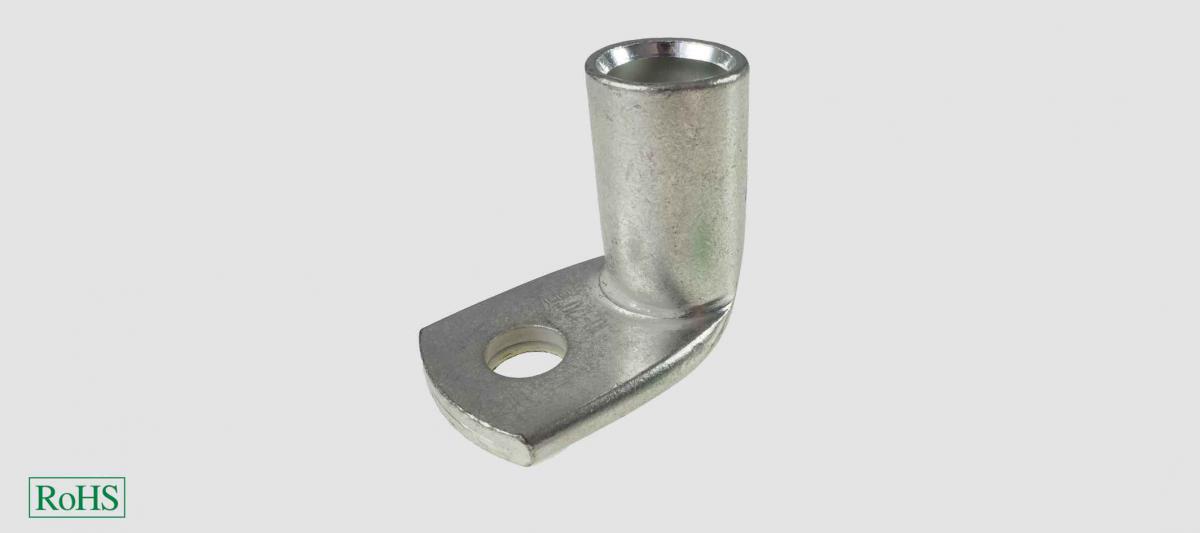

- Tubular cable lug angled HELU-S-RK-90-CU-UL
- Non-insulated tubular cable lugs in eye type design, 90° angled.
Ringform
|
Artikel-Nr. 90° |
Typ |
Querschnitt mm² |
a mm |
d mm |
b mm |
Gewicht kg / 1000 Stück |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
||||||||
|
907508 |
HELU-S-RK-90-CU-UL 6-5 |
6,0 |
5,3 |
3,5 |
11,0 |
5,6 |
100 |
30,80 |
28,60 |
22,00 |
|
907509 |
HELU-S-RK-90-CU-UL 6-6 |
6,0 |
6,4 |
3,5 |
11,0 |
6,2 |
100 |
30,80 |
28,60 |
22,00 |
|
907510 |
HELU-S-RK-90-CU-UL 6-8 |
6,0 |
8,4 |
3,5 |
15,0 |
6,4 |
100 |
33,40 |
31,00 |
23,80 |
|
907511 |
HELU-S-RK-90-CU-UL 6-10 |
6,0 |
10,5 |
3,5 |
18,0 |
6,8 |
100 |
37,90 |
35,20 |
27,10 |
|
907512 |
HELU-S-RK-90-CU-UL 6-12 |
6,0 |
13,0 |
3,5 |
20,0 |
6,6 |
100 |
37,90 |
35,20 |
27,10 |
|
907513 |
HELU-S-RK-90-CU-UL 10-5 |
10,0 |
5,3 |
4,5 |
12,0 |
5,4 |
100 |
39,00 |
36,20 |
27,80 |
|
907514 |
HELU-S-RK-90-CU-UL 10-6 |
10,0 |
6,4 |
4,5 |
12,0 |
5,9 |
100 |
34,50 |
32,10 |
24,70 |
|
907515 |
HELU-S-RK-90-CU-UL 10-8 |
10,0 |
8,4 |
4,5 |
15,0 |
6,7 |
100 |
37,90 |
35,20 |
27,10 |
|
907516 |
HELU-S-RK-90-CU-UL 10-10 |
10,0 |
10,5 |
4,5 |
18,0 |
7,0 |
100 |
37,90 |
35,20 |
27,10 |
|
907517 |
HELU-S-RK-90-CU-UL 10-12 |
10,0 |
13,0 |
4,5 |
20,0 |
7,0 |
100 |
42,40 |
39,40 |
30,30 |
|
907518 |
HELU-S-RK-90-CU-UL 16-5 |
16,0 |
5,3 |
5,5 |
12,0 |
10,7 |
100 |
46,20 |
42,90 |
33,00 |
|
907519 |
HELU-S-RK-90-CU-UL 16-6 |
16,0 |
6,4 |
5,5 |
12,0 |
11,5 |
100 |
46,20 |
42,90 |
33,00 |
|
907520 |
HELU-S-RK-90-CU-UL 16-8 |
16,0 |
8,4 |
5,5 |
15,0 |
12,0 |
100 |
42,50 |
39,40 |
30,30 |
|
907521 |
HELU-S-RK-90-CU-UL 16-10 |
16,0 |
10,5 |
5,5 |
18,0 |
12,3 |
100 |
48,30 |
44,80 |
34,50 |
|
907522 |
HELU-S-RK-90-CU-UL 16-12 |
16,0 |
13,0 |
5,5 |
20,0 |
12,3 |
100 |
50,50 |
46,90 |
36,10 |
|
907523 |
HELU-S-RK-90-CU-UL 25-6 |
25,0 |
6,4 |
7,0 |
15,0 |
13,5 |
100 |
68,80 |
63,90 |
49,20 |
|
907524 |
HELU-S-RK-90-CU-UL 25-8 |
25,0 |
8,4 |
7,0 |
16,0 |
14,3 |
100 |
62,80 |
58,30 |
44,80 |
|
907525 |
HELU-S-RK-90-CU-UL 25-10 |
25,0 |
10,5 |
7,0 |
18,0 |
15,7 |
100 |
68,80 |
63,90 |
49,20 |
|
907526 |
HELU-S-RK-90-CU-UL 25-12 |
25,0 |
13,0 |
7,0 |
20,0 |
15,1 |
100 |
72,80 |
67,60 |
52,00 |
|
907527 |
HELU-S-RK-90-CU-UL 35-6 |
35,0 |
6,4 |
8,5 |
17,0 |
21,0 |
100 |
88,60 |
82,30 |
63,30 |
|
907528 |
HELU-S-RK-90-CU-UL 35-8 |
35,0 |
8,4 |
8,5 |
17,0 |
23,1 |
100 |
80,30 |
74,60 |
57,40 |
|
907529 |
HELU-S-RK-90-CU-UL 35-10 |
35,0 |
10,5 |
8,5 |
20,0 |
23,6 |
100 |
88,50 |
82,20 |
63,20 |
|
907530 |
HELU-S-RK-90-CU-UL 35-12 |
35,0 |
13,0 |
8,5 |
22,0 |
23,7 |
100 |
89,70 |
83,30 |
64,10 |
|
907531 |
HELU-S-RK-90-CU-UL 35-16 |
35,0 |
17,0 |
8,5 |
28,0 |
24,8 |
100 |
93,20 |
86,60 |
66,60 |
|
907532 |
HELU-S-RK-90-CU-UL 50-6 |
50,0 |
6,4 |
10,0 |
20,0 |
30,0 |
100 |
124,40 |
115,50 |
88,90 |
|
907533 |
HELU-S-RK-90-CU-UL 50-8 |
50,0 |
8,4 |
10,0 |
20,0 |
32,2 |
100 |
124,40 |
115,50 |
88,90 |
|
907534 |
HELU-S-RK-90-CU-UL 50-10 |
50,0 |
10,5 |
10,0 |
20,0 |
33,2 |
100 |
115,20 |
107,00 |
82,30 |
|
907535 |
HELU-S-RK-90-CU-UL 50-12 |
50,0 |
13,0 |
10,0 |
23,0 |
32,8 |
100 |
124,40 |
115,50 |
88,90 |
|
907536 |
HELU-S-RK-90-CU-UL 50-16 |
50,0 |
17,0 |
10,0 |
27,0 |
36,3 |
100 |
129,20 |
119,90 |
92,30 |
|
907537 |
HELU-S-RK-90-CU-UL 50-20 |
50,0 |
21,0 |
10,0 |
30,0 |
38,9 |
100 |
136,70 |
127,00 |
97,70 |
|
907538 |
HELU-S-RK-90-CU-UL 70-6 |
70,0 |
6,4 |
12,0 |
24,0 |
44,1 |
25 |
146,80 |
136,30 |
104,90 |
|
907539 |
HELU-S-RK-90-CU-UL 70-8 |
70,0 |
8,4 |
12,0 |
24,0 |
48,6 |
25 |
146,80 |
136,30 |
104,90 |
|
907540 |
HELU-S-RK-90-CU-UL 70-10 |
70,0 |
10,5 |
12,0 |
24,0 |
50,6 |
25 |
136,00 |
126,30 |
97,20 |
|
907541 |
HELU-S-RK-90-CU-UL 70-12 |
70,0 |
13,0 |
12,0 |
24,0 |
49,4 |
25 |
146,80 |
136,30 |
104,90 |
|
907542 |
HELU-S-RK-90-CU-UL 70-16 |
70,0 |
17,0 |
12,0 |
28,0 |
51,1 |
25 |
150,60 |
139,80 |
107,60 |
|
907543 |
HELU-S-RK-90-CU-UL 70-20 |
70,0 |
21,0 |
12,0 |
29,0 |
52,6 |
25 |
157,70 |
146,40 |
112,70 |
|
907544 |
HELU-S-RK-90-CU-UL 95-8 |
95,0 |
8,4 |
13,5 |
26,0 |
53,3 |
25 |
170,00 |
157,80 |
121,40 |
|
907545 |
HELU-S-RK-90-CU-UL 95-10 |
95,0 |
10,5 |
13,5 |
26,0 |
55,9 |
25 |
170,00 |
157,80 |
121,40 |
|
907546 |
HELU-S-RK-90-CU-UL 95-12 |
95,0 |
13,0 |
13,5 |
26,0 |
56,6 |
25 |
159,00 |
147,60 |
113,60 |
|
907547 |
HELU-S-RK-90-CU-UL 95-16 |
95,0 |
17,0 |
13,5 |
28,0 |
60,0 |
25 |
170,80 |
158,60 |
122,00 |
|
907548 |
HELU-S-RK-90-CU-UL 120-8 |
120,0 |
8,4 |
15,0 |
29,0 |
76,3 |
25 |
216,40 |
200,90 |
154,60 |
|
907549 |
HELU-S-RK-90-CU-UL 120-10 |
120,0 |
10,5 |
15,0 |
29,0 |
80,7 |
25 |
216,40 |
200,90 |
154,60 |
|
907550 |
HELU-S-RK-90-CU-UL 120-12 |
120,0 |
13,0 |
15,0 |
29,0 |
79,9 |
25 |
196,60 |
182,60 |
140,40 |
|
907551 |
HELU-S-RK-90-CU-UL 120-16 |
120,0 |
17,0 |
15,0 |
30,0 |
84,6 |
25 |
216,40 |
200,90 |
154,60 |
|
907552 |
HELU-S-RK-90-CU-UL 150-8 |
150,0 |
8,4 |
16,8 |
31,0 |
80,3 |
25 |
270,00 |
250,70 |
192,90 |
|
907553 |
HELU-S-RK-90-CU-UL 150-10 |
150,0 |
10,5 |
16,8 |
31,0 |
80,7 |
25 |
270,00 |
250,70 |
192,90 |
|
907554 |
HELU-S-RK-90-CU-UL 150-12 |
150,0 |
13,0 |
16,8 |
31,0 |
82,9 |
25 |
247,30 |
229,70 |
176,70 |
|
907555 |
HELU-S-RK-90-CU-UL 150-16 |
150,0 |
17,0 |
16,8 |
31,0 |
85,0 |
25 |
270,00 |
250,70 |
192,90 |
|
907556 |
HELU-S-RK-90-CU-UL 150-20 |
150,0 |
21,0 |
16,8 |
35,0 |
88,9 |
25 |
270,00 |
250,70 |
192,90 |
|
907557 |
HELU-S-RK-90-CU-UL 185-10 |
185,0 |
10,5 |
19,0 |
35,0 |
114,1 |
25 |
311,00 |
288,80 |
222,20 |
|
907558 |
HELU-S-RK-90-CU-UL 185-12 |
185,0 |
13,0 |
19,0 |
35,0 |
120,4 |
25 |
311,00 |
288,80 |
222,20 |
|
907559 |
HELU-S-RK-90-CU-UL 185-16 |
185,0 |
17,0 |
19,0 |
35,0 |
124,8 |
25 |
301,40 |
279,80 |
215,30 |
|
907560 |
HELU-S-RK-90-CU-UL 185-20 |
185,0 |
21,0 |
19,0 |
35,0 |
127,0 |
25 |
311,00 |
288,80 |
222,20 |
|
907561 |
HELU-S-RK-90-CU-UL 240-10 |
240,0 |
10,5 |
21,0 |
38,0 |
133,2 |
25 |
385,80 |
358,20 |
275,60 |
|
907562 |
HELU-S-RK-90-CU-UL 240-12 |
240,0 |
13,0 |
21,0 |
38,0 |
134,0 |
25 |
385,80 |
358,20 |
275,60 |
|
907563 |
HELU-S-RK-90-CU-UL 240-16 |
240,0 |
17,0 |
21,0 |
38,0 |
137,6 |
25 |
357,60 |
332,10 |
255,40 |
|
907564 |
HELU-S-RK-90-CU-UL 240-20 |
240,0 |
21,0 |
21,0 |
38,0 |
142,3 |
25 |
385,80 |
358,20 |
275,60 |
|
907565 |
HELU-S-RK-90-CU-UL 300-12 |
300,0 |
13,0 |
24,0 |
43,0 |
199,2 |
20 |
573,90 |
532,90 |
409,90 |
|
907566 |
HELU-S-RK-90-CU-UL 300-16 |
300,0 |
17,0 |
24,0 |
43,0 |
209,0 |
20 |
573,90 |
532,90 |
409,90 |
|
907567 |
HELU-S-RK-90-CU-UL 300-20 |
300,0 |
21,0 |
24,0 |
43,0 |
218,1 |
20 |
573,90 |
532,90 |
409,90 |
