- The UNI-DICHT sealing inserts M20x1,5 (part no. 903961 up to 903965) can be used only with UNI-DICHT-VK-PA M20x1,5 (part no. 90831).
- The UNI-DICHT sealing inserts M20x1,5 (part no. 903966 up to 903970) can be used only with UNI-DICHT-VK-MS M20x1,5 (part no. 904213).
- The UNI-DICHT sealing insert PG21 (part no. 903981) can be used only with UNI-DICHT-VK-MS PG21 (part no. 904226).
- The UNI-DICHT sealing insert M32x1,5 (part no. 903981) can be used only with UNI-DICHT-VK-MS M32x1,5 (part no. 904216).

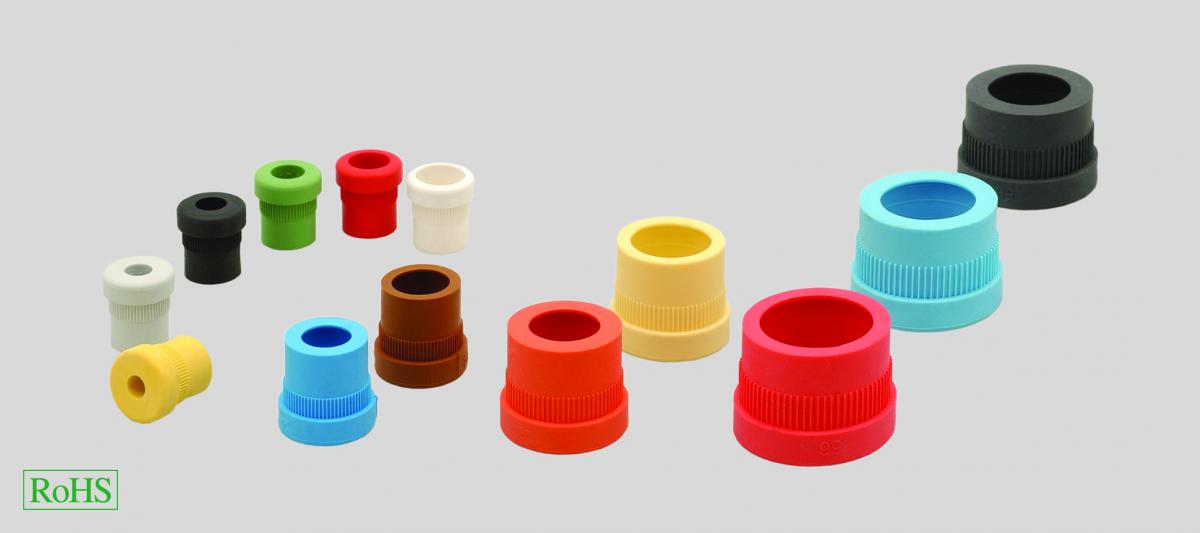

- Colour coded sealing inserts made by TPE for use with UNI-DICHT gland bodies made by polyamide or by brass.
- Plant and machine construction
- Robot construction
- Automation technology
- Vehicle construction and shipbuilding
- Rail technology
- Installation technology
- Control cabinet construction
|
Artikel-Nr. |
Größe PG |
Größe metrisch |
Farbe der |
Kabel-Ø von / bis mm |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
||||||
|
903952 |
- |
M12 x 1,5 |
gelb |
4,0 - 6,5 |
50 |
26,90 |
26,10 |
25,30 |
|
903953 |
7 |
- |
gelb |
4,0 - 6,5 |
50 |
14,00 |
13,60 |
13,20 |
|
903954 |
9 |
M16 x 1,5 |
gelb |
4,0 - 6,5 |
50 |
11,90 |
11,60 |
11,20 |
|
903955 |
9 |
M16 x 1,5 |
grau |
5,0 - 8,0 |
50 |
11,90 |
11,60 |
11,20 |
|
903956 |
9 |
M16 x 1,5 |
schwarz |
6,5 - 9,5 |
50 |
11,90 |
11,60 |
11,20 |
|
903957 |
11 |
M20 x 1,5 |
gelb |
4,0 - 6,5 |
50 |
16,20 |
15,80 |
15,20 |
|
903958 |
11 |
M20 x 1,5 |
grau |
5,0 - 8,0 |
50 |
16,20 |
15,80 |
15,20 |
|
903959 |
11 |
M20 x 1,5 |
schwarz |
6,5 - 9,5 |
50 |
16,20 |
15,80 |
15,20 |
|
903960 |
11 |
M20 x 1,5 |
grün |
7,0 - 10,5 |
50 |
16,20 |
15,80 |
15,20 |
|
903961 |
- |
M20 x 1,5 |
gelb |
4,0 - 6,5 |
50 |
53,00 |
51,40 |
49,80 |
|
903962 |
- |
M20 x 1,5 |
grau |
5,0 - 8,0 |
50 |
53,00 |
51,40 |
49,80 |
|
903963 |
- |
M20 x 1,5 |
schwarz |
6,5 - 9,5 |
50 |
53,00 |
51,40 |
49,80 |
|
903964 |
- |
M20 x 1,5 |
grün |
7,0 - 10,5 |
50 |
53,00 |
51,40 |
49,80 |
|
903965 |
- |
M20 x 1,5 |
rot |
9,0 - 13,0 |
50 |
53,00 |
51,40 |
49,80 |
|
903966 |
13,5 |
M20 x 1,5 |
gelb |
4,0 - 6,5 |
50 |
21,40 |
20,80 |
20,10 |
|
903967 |
13,5 |
M20 x 1,5 |
grau |
5,0 - 8,0 |
50 |
21,40 |
20,80 |
20,10 |
|
903968 |
13,5 |
M20 x 1,5 |
schwarz |
6,5 - 9,5 |
50 |
21,40 |
20,80 |
20,10 |
|
903969 |
13,5 |
M20 x 1,5 |
grün |
7,0 - 10,5 |
50 |
21,40 |
20,80 |
20,10 |
|
903970 |
13,5 |
M20 x 1,5 |
rot |
9,0 - 13,0 |
50 |
21,40 |
20,80 |
20,10 |
|
903971 |
16 |
M25 x 1,5 |
gelb |
4,0 - 6,5 |
50 |
23,70 |
23,00 |
22,30 |
|
903972 |
16 |
M25 x 1,5 |
grau |
5,0 - 8,0 |
50 |
23,70 |
23,00 |
22,30 |
|
903973 |
16 |
M25 x 1,5 |
schwarz |
6,5 - 9,5 |
50 |
23,70 |
23,00 |
22,30 |
|
903974 |
16 |
M25 x 1,5 |
grün |
7,0 - 10,5 |
50 |
23,70 |
23,00 |
22,30 |
|
903975 |
16 |
M25 x 1,5 |
rot |
9,0 - 13,0 |
50 |
23,70 |
23,00 |
22,30 |
|
903976 |
16 |
M25 x 1,5 |
weiß |
11,5 - 15,5 |
50 |
23,70 |
23,00 |
22,30 |
|
903977 |
21 |
M32 x 1,5 |
grün |
7,0 - 10,5 |
25 |
40,70 |
39,50 |
38,20 |
|
903978 |
21 |
M32 x 1,5 |
rot |
9,0 - 13,0 |
25 |
40,70 |
39,50 |
38,20 |
|
903979 |
21 |
M32 x 1,5 |
weiß |
11,5 - 15,5 |
25 |
40,70 |
39,50 |
38,20 |
|
903980 |
21 |
M32 x 1,5 |
blau |
14,0 - 18,0 |
25 |
40,70 |
39,50 |
38,20 |
|
903981 |
21 |
M32 x 1,5 |
braun |
17,0 - 20,5 |
25 |
40,70 |
39,50 |
38,20 |
|
903982 |
29 |
M40 x 1,5 |
weiß |
11,5 - 15,5 |
10 |
74,20 |
72,00 |
69,60 |
|
903983 |
29 |
M40 x 1,5 |
blau |
14,0 - 18,0 |
10 |
74,20 |
72,00 |
69,60 |
|
903984 |
29 |
M40 x 1,5 |
braun |
17,0 - 20,5 |
10 |
74,20 |
72,00 |
69,60 |
|
903985 |
29 |
M40 x 1,5 |
orange |
20,0 - 25,0 |
10 |
74,20 |
72,00 |
69,60 |
|
903986 |
29 |
M40 x 1,5 |
hellgelb |
24,0 - 28,0 |
10 |
74,20 |
72,00 |
69,60 |
|
903987 |
36 |
M50 x 1,5 |
anthrazit |
27,0 - 32,0 |
10 |
174,60 |
169,30 |
163,80 |
|
903988 |
36 |
M50 x 1,5 |
hellblau |
29,0 - 34,0 |
10 |
174,60 |
169,30 |
163,80 |
|
903989 |
36 |
M50 x 1,5 |
rosa |
32,0 - 36,0 |
10 |
174,60 |
169,30 |
163,80 |
|
903990 |
42 |
M50 x 1,5 |
weiß |
36,0 - 40,0 |
5 |
345,60 |
335,10 |
324,20 |
|
903991 |
48 |
M63 x 1,5 |
weiß |
39,0 - 44,0 |
5 |
486,60 |
471,80 |
456,40 |
