- Easy to assemble
- Completely water-tight
- Optimum strain relief
- Large Clamping areas

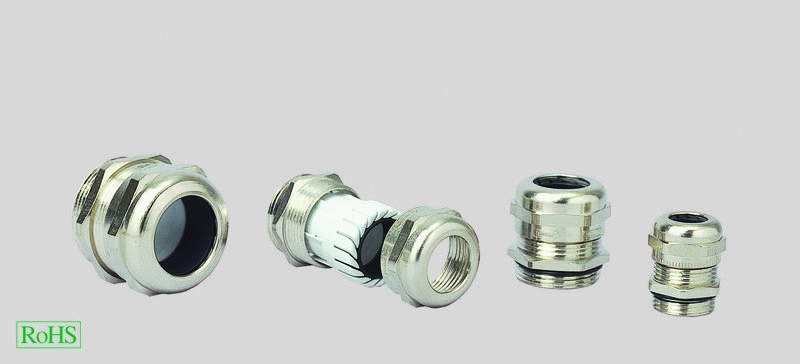

- The cable gland to meet stringent requirements in technology.
- Plant and machine construction
- Robot construction
- Automation technology
- Vehicle construction and shipbuilding
- Rail technology
- Installation technology
- Control cabinet construction
NPT-резьба - с закрепительным использованием
|
Artikel-Nr. |
Größe NPT |
Kabel-Ø von / bis mm |
Gewinde- mm |
Schlüssel- mm |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
||||||
|
96678 |
3/8" |
2,0 - 6,0 |
15,0 |
17 / 19 |
50 |
131,40 |
127,30 |
123,30 |
|
97103 |
1/2" |
5,0 - 9,0 |
13,0 |
22 / 24 |
50 |
173,10 |
167,70 |
162,40 |
|
97661 |
3/4" |
9,0 - 16,0 |
13,0 |
30 |
25 |
325,20 |
315,10 |
305,00 |
|
97662 |
1" |
13,0 - 20,0 |
19,0 |
40 |
25 |
964,80 |
934,90 |
905,00 |
метрическая резьба
|
Artikel-Nr. |
Größe Metr. |
Kabel-Ø von / bis mm |
Gewinde- mm |
Schlüssel- mm |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
||||||
|
98285 |
M12 x 1,5 |
3,0 - 6,5 |
6,5 |
14 |
50 |
107,40 |
104,10 |
100,70 |
|
90292 |
M16 x 1,5 |
4,0 - 8,0 |
6,0 |
17 / 19 |
50 |
113,20 |
109,70 |
106,20 |
|
98033 |
M16 x 1,5 |
5,0 - 10,0 |
6,0 |
20 |
50 |
211,80 |
205,20 |
198,70 |
|
90293 |
M20 x 1,5 |
6,0 - 12,0 |
6,0 |
22 |
50 |
141,20 |
136,90 |
132,60 |
|
98034 |
M20 x 1,5 |
10,0 - 14,0 |
6,0 |
24 |
50 |
278,40 |
269,90 |
261,40 |
|
90294 |
M25 x 1,5 |
13,0 - 18,0 |
7,0 |
30 |
25 |
282,30 |
273,50 |
264,80 |
|
90295 |
M32 x 1,5 |
18,0 - 25,0 |
8,0 |
40 |
25 |
456,50 |
442,30 |
428,20 |
|
90296 |
M40 x 1,5 |
22,0 - 32,0 |
8,0 |
50 |
10 |
841,20 |
815,10 |
789,00 |
|
90297 |
M50 x 1,5 |
32,0 - 38,0 |
9,0 |
57 |
5 |
1652,10 |
1600,90 |
1549,70 |
|
90298 |
M63 x 1,5 |
37,0 - 44,0 |
10,0 |
64 / 68 |
5 |
2002,20 |
1940,10 |
1878,10 |
NPT - резьба
|
Artikel-Nr. |
Größe NPT |
Kabel-Ø von / bis mm |
Gewinde- mm |
Schlüssel- mm |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
||||||
|
91845 |
3/8" |
4,0 - 8,0 |
15,0 |
17 / 19 |
50 |
128,40 |
124,40 |
120,40 |
|
91846 |
1/2" |
6,0 - 12,0 |
13,0 |
22 / 24 |
50 |
168,70 |
163,50 |
158,20 |
|
91847 |
3/4" |
13,0 - 18,0 |
13,0 |
30 |
25 |
320,90 |
311,00 |
301,00 |
|
91848 |
1" |
18,0 - 25,0 |
19,0 |
40 |
25 |
963,40 |
933,50 |
903,70 |
PG - резьба
|
Artikel-Nr. |
Größe PG |
Kabel-Ø von / bis mm |
Gewinde- mm |
Schlüssel- mm |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
||||||
|
99208 |
7 |
2,0 - 5,0 |
5,0 |
14 |
50 |
73,00 |
70,70 |
68,50 |
|
99209 |
9 |
2,0 - 6,0 |
6,0 |
17 |
50 |
88,30 |
85,60 |
82,80 |
|
99210 |
11 |
3,0 - 7,0 |
6,0 |
20 |
50 |
103,70 |
100,50 |
97,30 |
|
99211 |
13,5 |
5,0 - 9,0 |
6,5 |
22 |
50 |
115,40 |
111,80 |
108,20 |
|
99212 |
16 |
7,0 - 12,0 |
6,5 |
24 |
50 |
133,50 |
129,40 |
125,20 |
|
99213 |
21 |
9,0 - 16,0 |
7,0 |
30 |
25 |
218,40 |
211,60 |
204,90 |
|
99214 |
29 |
13,0 - 20,0 |
8,0 |
40 |
25 |
349,80 |
339,00 |
328,10 |
|
99215 |
36 |
20,0 - 26,0 |
8,0 |
50 |
10 |
656,60 |
636,20 |
615,90 |
|
99216 |
42 |
25,0 - 31,0 |
9,0 |
57 |
5 |
1286,30 |
1246,40 |
1206,50 |
|
99217 |
48 |
29,0 - 35,0 |
10,0 |
64 |
5 |
1552,30 |
1504,20 |
1456,10 |
метрическая резьба - с закрепительным использованием
|
Artikel-Nr. |
Größe Metr. |
Kabel-Ø von / bis mm |
Gewinde- mm |
Schlüssel- mm |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
||||||
|
98035 |
M12 x 1,5 |
2,0 - 5,0 |
6,5 |
14 |
50 |
108,60 |
105,20 |
101,90 |
|
98036 |
M16 x 1,5 |
2,0 - 6,0 |
6,0 |
17 / 19 |
50 |
115,60 |
112,00 |
108,40 |
|
98038 |
M20 x 1,5 |
5,0 - 9,0 |
6,0 |
22 |
50 |
151,00 |
146,30 |
141,60 |
|
98040 |
M25 x 1,5 |
9,0 - 16,0 |
7,0 |
30 |
25 |
286,00 |
277,10 |
268,30 |
|
98041 |
M32 x 1,5 |
13,0 - 20,0 |
8,0 |
40 |
25 |
458,10 |
443,90 |
429,70 |
|
98042 |
M40 x 1,5 |
20,0 - 26,0 |
8,0 |
50 |
10 |
860,20 |
833,50 |
806,90 |
|
98043 |
M50 x 1,5 |
25,0 - 31,0 |
9,0 |
57 |
5 |
1685,00 |
1632,80 |
1580,50 |
|
98044 |
M63 x 1,5 |
29,0 - 35,0 |
10,0 |
64 / 68 |
5 |
2036,60 |
1973,50 |
1910,30 |
PG - резьба
|
Artikel-Nr. |
Größe PG |
Kabel-Ø von / bis mm |
Gewinde- mm |
Schlüssel- mm |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
||||||
|
90300 |
7 |
3,0 - 6,5 |
5,0 |
14 |
50 |
72,20 |
70,00 |
67,70 |
|
90301 |
9 |
4,0 - 8,0 |
6,0 |
17 |
50 |
86,30 |
83,60 |
80,90 |
|
90302 |
11 |
5,0 - 10,0 |
6,0 |
20 |
50 |
101,90 |
98,70 |
95,60 |
|
90303 |
13,5 |
6,0 - 12,0 |
6,5 |
22 |
50 |
113,40 |
109,90 |
106,40 |
|
90304 |
16 |
10,0 - 14,0 |
6,5 |
24 |
50 |
131,30 |
127,20 |
123,20 |
|
90305 |
21 |
13,0 - 18,0 |
7,0 |
30 |
25 |
215,70 |
209,00 |
202,30 |
|
90306 |
29 |
18,0 - 25,0 |
8,0 |
40 |
25 |
348,60 |
337,80 |
327,00 |
|
90307 |
36 |
22,0 - 32,0 |
8,0 |
50 |
10 |
641,90 |
622,00 |
602,10 |
|
90308 |
42 |
32,0 - 38,0 |
9,0 |
57 |
5 |
1261,20 |
1222,10 |
1183,00 |
|
90309 |
48 |
37,0 - 44,0 |
10,0 |
64 |
5 |
1528,20 |
1480,80 |
1433,50 |
