- Оптимальная разгрузка кабеля от натяжения благодаря встроенным зажимам
- Легкость монтажа
- Широкий диапазон размеров
- Данные по испытаниям - см. в разделе "Техническая информация".

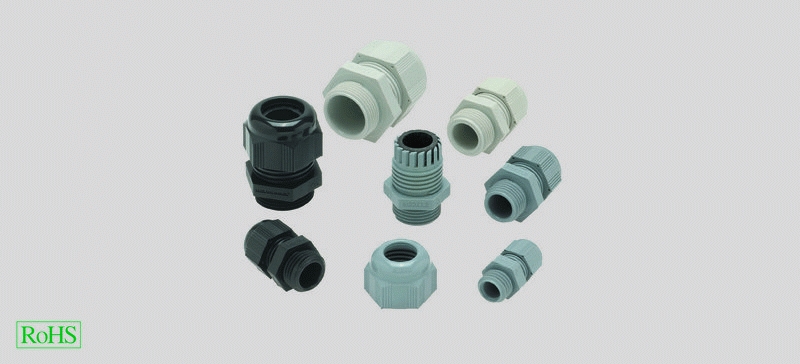

Пластиковый кабельный ввод с защитой от вибрации
- Приборо- и машиностроение
- Робототехника
- Автоматизация
- Грузовой и судовой транспорт
- Железнодорожная техника
- Электромонтаж
- Распределительные шкафы
PG - резьба
|
Artikel-Nr. hellgrau RAL 7035 |
Artikel-Nr. dunkelgrau RAL 7001 |
Artikel-Nr. schwarz RAL 9005 |
Größe PG |
Kabel-Ø von / bis mm |
Gewinde- mm |
Schlüssel- mm |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
||||||||
|
99300 |
99310 |
99320 |
7 |
3,0 - 6,5 |
8,0 |
15 |
100 |
29,90 |
28,70 |
27,50 |
|
99301 |
99311 |
99321 |
9 |
4,0 - 8,0 |
8,0 |
19 |
50 |
30,60 |
29,40 |
28,20 |
|
99302 |
99312 |
99322 |
11 |
5,0 - 10,0 |
8,0 |
22 |
50 |
37,90 |
36,40 |
34,90 |
|
99303 |
99313 |
99323 |
13,5 |
6,0 - 12,0 |
9,0 |
24 |
50 |
42,20 |
40,50 |
38,80 |
|
99304 |
99314 |
99324 |
16 |
10,0 - 14,0 |
10,0 |
27 |
50 |
47,40 |
45,50 |
43,60 |
|
99305 |
99315 |
99325 |
21 |
13,0 - 18,0 |
11,0 |
33 |
25 |
67,10 |
64,40 |
61,70 |
|
99306 |
99316 |
99326 |
29 |
18,0 - 25,0 |
11,0 |
42 |
20 |
152,50 |
146,40 |
140,30 |
|
99307 |
99317 |
99327 |
36 |
22,0 - 32,0 |
13,0 |
53 |
10 |
384,00 |
368,60 |
353,30 |
|
99308 |
99318 |
99328 |
42 |
30,0 - 38,0 |
13,0 |
60 |
10 |
659,40 |
633,00 |
606,60 |
|
99309 |
99319 |
99329 |
48 |
34,0 - 44,0 |
14,0 |
65 |
10 |
898,70 |
862,80 |
826,80 |
NPT - резьба
|
Artikel-Nr. hellgrau RAL 7035 |
Artikel-Nr. dunkelgrau RAL 7001 |
Artikel-Nr. schwarz RAL 9005 |
Größe NPT |
Kabel-Ø von / bis mm |
Gewinde- mm |
Schlüssel- mm |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
||||||||
|
92780 |
92790 |
92800 |
3/8" |
5,0 - 10,0 |
15,0 |
22 |
50 |
51,90 |
46,40 |
42,60 |
|
92781 |
92791 |
92801 |
1/2" |
6,0 - 12,0 |
15,0 |
24 |
50 |
57,60 |
51,50 |
47,20 |
|
92782 |
92792 |
92802 |
1/2" |
10,0 - 14,0 |
15,0 |
27 |
50 |
70,40 |
62,90 |
57,70 |
|
92783 |
92793 |
92803 |
3/4" |
13,0 - 18,0 |
15,0 |
33 |
25 |
108,30 |
96,80 |
88,70 |
|
92784 |
92794 |
92804 |
1" |
18,0 - 25,0 |
18,0 |
42 |
20 |
174,60 |
155,90 |
143,10 |
метрическая резьба
|
Artikel-Nr. hellgrau RAL 7035 |
Artikel-Nr. dunkelgrau RAL 7001 |
Artikel-Nr. schwarz RAL 9005 |
Größe Metr. |
Kabel-Ø von / bis mm |
Gewinde- mm |
Schlüssel- mm |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
||||||||
|
93908 |
93923 |
93937 |
M12 x 1,5 |
3,0 - 6,5 |
6,0 |
15 |
100 |
28,60 |
27,50 |
26,30 |
|
93909 |
93924 |
93938 |
M16 x 1,5 |
4,0 - 8,0 |
8,0 |
19 |
50 |
34,00 |
32,60 |
31,30 |
|
907275 |
907276 |
907277 |
M16 x 1,5 |
5,0 - 10,0 |
8,0 |
19 |
50 |
34,00 |
32,60 |
31,30 |
|
92667 |
92668 |
92669 |
M16 x 1,5 |
5,0 - 10,0 |
10,0 |
22 |
50 |
34,00 |
32,60 |
31,30 |
|
93910 |
93925 |
93939 |
M20 x 1,5 |
6,0 - 12,0 |
10,0 |
24 |
50 |
44,20 |
42,40 |
40,70 |
|
93911 |
93926 |
93940 |
M25 x 1,5 |
11,0 - 17,0 |
8,0 |
29 |
50 |
70,00 |
67,20 |
64,40 |
|
93912 |
93927 |
93941 |
M32 x 1,5 |
15,0 - 21,0 |
10,0 |
36 |
25 |
130,70 |
125,50 |
120,20 |
|
93913 |
93928 |
93942 |
M40 x 1,5 |
19,0 - 28,0 |
10,0 |
46 |
20 |
279,90 |
268,70 |
257,50 |
|
93914 |
93929 |
93943 |
M50 x 1,5 |
30,0 - 38,0 |
18,0 |
60 |
10 |
521,40 |
500,50 |
479,70 |
|
93915 |
93930 |
93944 |
M63 x 1,5 |
34,0 - 44,0 |
18,0 |
65 |
10 |
724,20 |
695,20 |
666,30 |
метрическая резьба - соединительное уплотнение
|
Artikel-Nr. hellgrau RAL 7035 |
Artikel-Nr. dunkelgrau RAL 7001 |
Artikel-Nr. schwarz RAL 9005 |
Größe Metr. |
Kabel-Ø von / bis mm |
Gewinde- mm |
Schlüssel- mm |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
||||||||
|
903532 |
903542 |
903552 |
M12 x 1,5 |
2,0 - 5,0 |
8,0 |
15 |
100 |
29,90 |
28,70 |
27,50 |
|
903533 |
903543 |
903553 |
M16 x 1,5 |
2,0 - 6,0 |
8,0 |
19 |
50 |
35,80 |
34,40 |
32,90 |
|
903534 |
903544 |
903554 |
M20 x 1,5 |
5,0 - 9,0 |
10,0 |
24 |
50 |
46,40 |
44,50 |
42,70 |
|
903535 |
903545 |
903555 |
M25 x 1,5 |
9,0 - 13,0 |
8,0 |
29 |
50 |
73,60 |
70,70 |
67,70 |
|
903536 |
903546 |
903556 |
M32 x 1,5 |
11,0 - 15,0 |
10,0 |
36 |
25 |
137,20 |
131,70 |
126,20 |
|
903537 |
903547 |
903557 |
M40 x 1,5 |
16,0 - 23,0 |
10,0 |
46 |
20 |
293,90 |
282,10 |
270,40 |
|
903538 |
903548 |
903558 |
M50 x 1,5 |
25,0 - 31,0 |
18,0 |
60 |
10 |
538,40 |
516,90 |
495,30 |
|
903539 |
903549 |
903559 |
M63 x 1,5 |
29,0 - 35,0 |
18,0 |
65 |
10 |
760,40 |
730,00 |
699,60 |
