- Suitable connection glands:
- LT straight, LT angled, T&B straight, T&B angled
- For extensive temperature ranges.

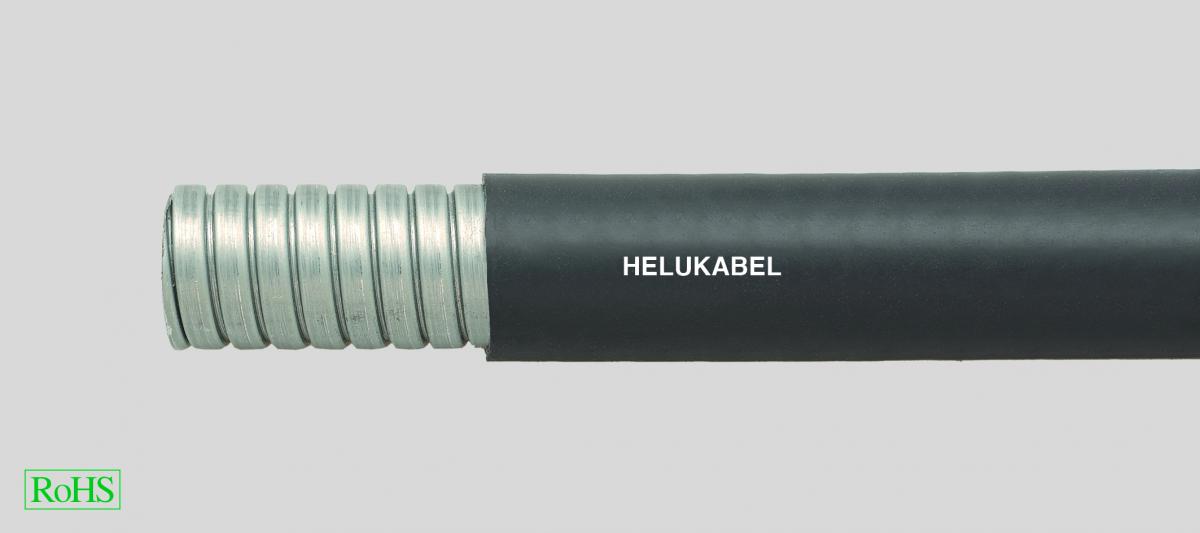

- Protection tubes from reinforced, galvanised steel band with spiral wound, latched profile, a continuous cord seal and extruded plastic sheath.
- This complex construction method keeps the plastic sheath and the internal tube flush together.
|
Artikel-Nr. schwarz |
Nennweite Zoll |
Innen-Ø mm |
Außen-Ø mm |
VPE |
Netto EUR/100 Meter bei Abnahme von |
||
|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
|||||
|
94735 |
3/8" |
12,6 |
17,8 |
30 |
770,80 |
751,50 |
732,30 |
|
96410 |
1/2" |
16,0 |
21,1 |
30 |
899,60 |
877,10 |
854,60 |
|
96954 |
3/4" |
21,0 |
26,4 |
30 |
1196,70 |
1166,80 |
1136,90 |
|
97945 |
1" |
26,5 |
33,1 |
30 |
2027,30 |
1976,60 |
1925,90 |
|
96247 |
1 1/4" |
35,1 |
41,8 |
15 |
2633,10 |
2567,30 |
2501,40 |
|
97668 |
1 1/2" |
40,3 |
47,8 |
15 |
5146,60 |
5017,90 |
4889,30 |
|
97811 |
2" |
51,6 |
59,9 |
15 |
5830,80 |
5685,00 |
5539,30 |
