DataSheet:
- Code type indicates the required hexagonal clamping insert.

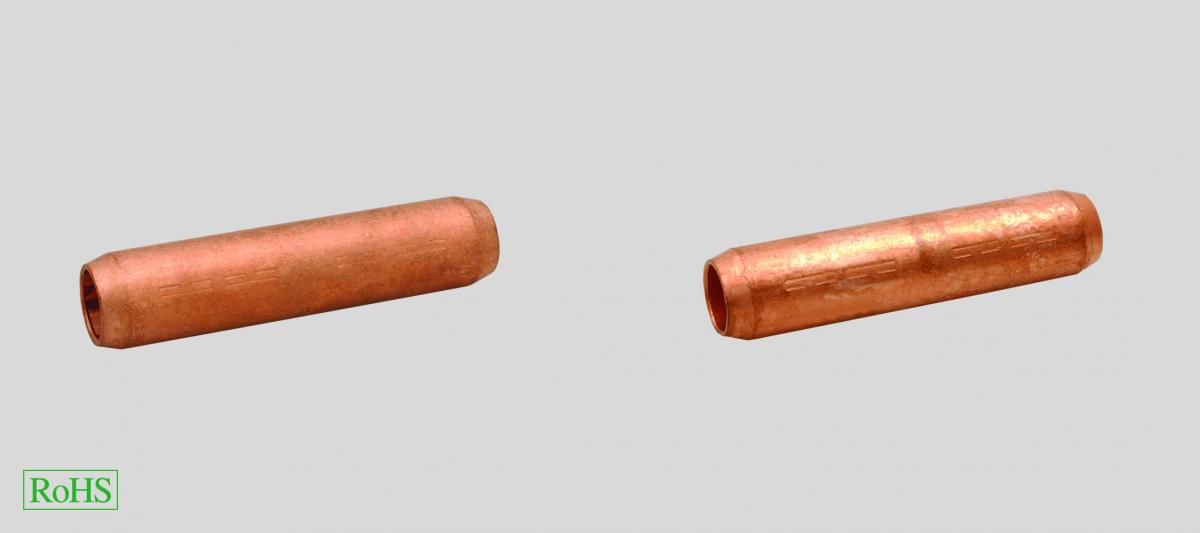

- Clamping connection sleeves for unstrained clamping of Cu medium-range voltage cables 10-30 kV.
blank - mit Ölstopp
|
Artikel-Nr. |
Typ |
Querschnitt mm² |
d mm |
l mm |
Kennzahl |
Gewicht kg / 1000 Stück |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|---|---|
|
bis 100 |
101 - 500 |
501 - 1000 |
||||||||
|
99440 |
PV-CM 25 |
25,0 |
7,5 |
60,0 |
12,0 |
40,8 |
10 |
283,10 |
261,90 |
240,60 |
|
99441 |
PV-CM 35 |
35,0 |
8,2 |
60,0 |
12,0 |
35,6 |
10 |
262,40 |
242,70 |
223,00 |
|
99442 |
PV-CM 50 |
50,0 |
10,0 |
65,0 |
14,0 |
49,0 |
10 |
296,50 |
274,30 |
252,00 |
|
99443 |
PV-CM 70 |
70,0 |
11,5 |
65,0 |
16,0 |
61,0 |
10 |
336,60 |
311,40 |
286,10 |
|
99444 |
PV-CM 95 |
95,0 |
13,5 |
90,0 |
18,0 |
109,8 |
10 |
449,00 |
415,30 |
381,70 |
|
99445 |
PV-CM 120 |
120,0 |
15,5 |
90,0 |
20,0 |
126,8 |
5 |
500,90 |
463,30 |
425,80 |
|
99446 |
PV-CM 150 |
150,0 |
17,0 |
105,0 |
22,0 |
180,9 |
5 |
662,30 |
612,60 |
563,00 |
|
99447 |
PV-CM 185 |
185,0 |
19,0 |
105,0 |
25,0 |
203,5 |
5 |
733,10 |
678,10 |
623,10 |
|
99448 |
PV-CM 240 |
240,0 |
21,5 |
125,0 |
28,0 |
316,4 |
5 |
1014,80 |
938,70 |
862,60 |
|
99449 |
PV-CM 300 |
300,0 |
24,5 |
125,0 |
32,0 |
354,0 |
1 |
1205,80 |
1115,40 |
1024,90 |
