Высокопрочная кабельная катушка HELUCOM®, мобильный кабель

DataSheet:

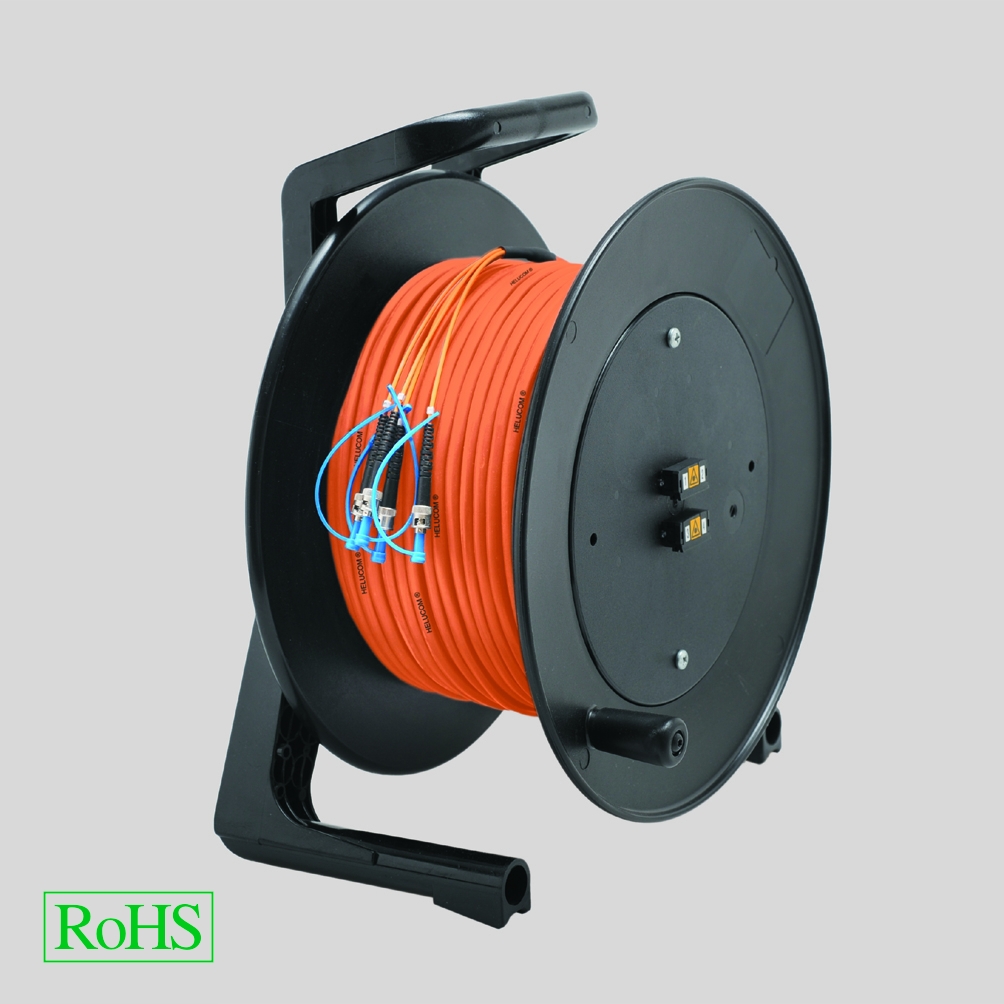

  • Rubber cable reel with HELUCOM® fibre optic mobile cable
  • Components of HELUCOM CONNECTING SYSTEMS® according actual standards. Meet the standard IEC 60794-1-2 F5 and E6. Also they realize the optical data acc. OM1, OM2 and ITU-T G.652.
  • Rubber cable reel with 4 fibre optic jacks and fibre optic plugs. Suitable for mobile use on site, for example for meetings, TV-Transmissions, Fairs, etc.. Everywhere when there is a need for a removable cable connection. Usable for flexible and fixed installation cabling.
  • We also can deliver other cable length, other fibre types or other types of plugs



Art.-Nr.

Fasertyp

Faser-
anzahl

Steckverbinder-
typ 1

Steckverbinder-
typ 2

Kabel-
länge

m

802223

Multimode G50/125

4

ST

ST

500,0

802226

Multimode G62,5/125

4

ST

ST

500,0

802229

Single-Mode E9/125

4

ST

ST

500,0

802224

Multimode G50/125

4

SC-Duplex

SC-Duplex

500,0

802227

Multimode G62,5/125

4

SC-Duplex

SC-Duplex

500,0

802230

Single-Mode E9/125

4

SC-Duplex

SC-Duplex

500,0

802225

Multimode G50/125

4

LC-Duplex

LC-Duplex

500,0

802228

Multimode G62,5/125

4

LC-Duplex

LC-Duplex

500,0

802231

Single-Mode E9/125

4

LC-Duplex

LC-Duplex

500,0
