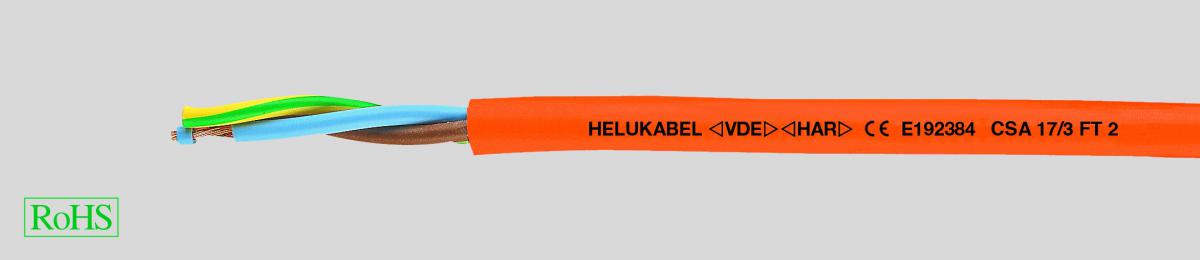

H05VV-F/SJT 300 V, nach DIN VDE 0281 und UL 62

DataSheet:

  • PVC control cable to DIN VDE 0285-525-2-11/DIN EN 50525-2-11, IEC 60227-5 and UL-Std.62 and CSA 22.2 No. 49
  • Temperature range
  • HAR flexing -5°C to +70°C
  • HAR fixed installation -40°C to +70°C
  • UL/CSA flexing -5°C to +60°C
  • UL/CSA fixed installation -40°C to +60°C
  • Nominal voltage
  • HAR U0/U 300/500 V
  • UL/CSA U 300 V
  • Test voltage 2500 V, 5 min.
  • Breakdown voltage min. 5000 V
  • Spark-Test6000 V
  • Insulation resistance
  • min. 20 MOhm x km
  • Minimum bending radius approx. 7,5x cable Ø
  • Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)
  • Bare copper-conductor, fine-wire
  • with AWG dimensions to UL-Std. 62
  • PVC insulation TI2 to
  • DIN VDE 0207-363-3/DIN EN 50363-3
  • and class 43 to UL-Std. 62 (Table 50.182,
  • UL-Std. 1581) acc. to
  • CSA-Std. C 22.2 No 49 Type SJT
  • Core identification acc. to colour
  • code DIN VDE 0293-308, one coloured
  • GN-YE conductor, 3 cores and above
  • Core stranded with optimal lay-length
  • PVC outer sheath TM2 to
  • DIN VDE 0207-363-4-1/DIN EN 50363-4-1
  • and class 43 to UL-Std. 62
  • (Table 50.182, UL-Std. 1581) acc. to
  • CSA-Std. C 22.2 No 49 Type SJT
  • Sheath colour by request
  • PVC self-extinguishing and flame retardant
  • acc. to DIN VDE 0482-332-1-2,
  • DIN EN 60332-1-2, IEC 60332-1 (equivalent
  • DIN VDE 0472 part 804 test method B), FT2
  • The materials used in manufacture are
  • cadmium-free and contain no silicone
  • and free from substances harmful to
  • the wetting properties of lacquers
  • G = with green-yellow conductor
  • x = without green-yellow conductor
  • Colour code:
  • 0 = RAL 5015, blue
  • 1 = RAL 6018, green
  • 2 = RAL 8003, brown
  • 3 = RAL 1021, yellow
  • 4 = RAL 3000, red
  • 5 = RAL 2003, orange
  • 6 = RAL 4005, violet
  • 7 = gold
  • 8 = dusky gold
  • Please add the individual part no. for order
  • with the identification colour code.
  • Further colours on request.
  • These flexible PVC control cables, VDE-HAR-UL-CSA approved, are designed for the export and also for the export-orientated-equipment. These cables are especially suited to use for the appliance with medium mechanical stresses with free movement without tensile stress in households, kitchens and offices, also for household appliances in damp and wet areas, e. g. refrigerators, washing machines, spin-driver etc. , as far as this cable is admitted to the relevant specifications of the equipment. These cables are suited to be used for cooking and heating apparatus under the condition that cable does not come in direct contact with hot parts of the apparatus and no other influences or heat. The cables are suitable for fixed installation in furnitures, partition walls, decoration covering and in hollow spaces of prefabricated building parts. They are not suitable for use in open air, in industries (also permitted to tailor workshops and of that kind) and in agriculture plants and for connecting commercial electrical tools.
  • CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.



Art.-Nr.

Aderzahl x
Nennquer-
schnitt mm²

Mantel-
farbe

Außen-Ø

ca. mm

Cu-Zahl

kg / km

Gewicht

ca. kg / km

Preis

EUR / 100m

Cu 150,-

31100

2 x 1

blau

7,2

19,2

56,0

232,00

31101

2 x 1

grün

7,2

19,2

56,0

232,00

31102

2 x 1

braun

7,2

19,2

56,0

232,00

31103

2 x 1

gelb

7,2

19,2

56,0

232,00

31104

2 x 1

rot

7,2

19,2

56,0

232,00

31105

2 x 1

orange

7,2

19,2

56,0

232,00

31106

2 x 1

violett

7,2

19,2

56,0

232,00

31107

2 x 1

gold

7,2

19,2

56,0

232,00

31108

2 x 1

altgold

7,2

19,2

56,0

232,00

31110

3 G 1

blau

7,6

28,8

73,0

263,00

31111

3 G 1

grün

7,6

28,8

73,0

263,00

31112

3 G 1

braun

7,6

28,8

73,0

263,00

31113

3 G 1

gelb

7,6

28,8

73,0

263,00

31114

3 G 1

rot

7,6

28,8

73,0

263,00

31115

3 G 1

orange

7,6

28,8

73,0

263,00

31116

3 G 1

violett

7,6

28,8

73,0

263,00

31117

3 G 1

gold

7,6

28,8

73,0

263,00

31118

3 G 1

altgold

7,6

28,8

73,0

263,00

31120

4 G 1

blau

8,6

38,4

86,0

317,00

31121

4 G 1

grün

8,6

38,4

86,0

317,00

31122

4 G 1

braun

8,6

38,4

86,0

317,00

31123

4 G 1

gelb

8,6

38,4

86,0

317,00

31124

4 G 1

rot

8,6

38,4

86,0

317,00

31125

4 G 1

orange

8,6

38,4

86,0

317,00

31126

4 G 1

violett

8,6

38,4

86,0

317,00

31127

4 G 1

gold

8,6

38,4

86,0

317,00

31128

4 G 1

altgold

8,6

38,4

86,0

317,00

31130

5 G 1

blau

9,4

48,0

105,0

360,00

31131

5 G 1

grün

9,4

48,0

105,0

360,00

31132

5 G 1

braun

9,4

48,0

105,0

360,00

31133

5 G 1

gelb

9,4

48,0

105,0

360,00

31134

5 G 1

rot

9,4

48,0

105,0

360,00

31135

5 G 1

orange

9,4

48,0

105,0

360,00

31136

5 G 1

violett

9,4

48,0

105,0

360,00

31137

5 G 1

gold

9,4

48,0

105,0

360,00

31138

5 G 1

altgold

9,4

48,0

105,0

360,00

31140

2 x 1,5

blau

7,6

28,8

82,0

247,00

31141

2 x 1,5

grün

7,6

28,8

82,0

247,00

31142

2 x 1,5

braun

7,6

28,8

82,0

247,00

31143

2 x 1,5

gelb

7,6

28,8

82,0

247,00

31144

2 x 1,5

rot

7,6

28,8

82,0

247,00

31145

2 x 1,5

orange

7,6

28,8

82,0

247,00

31146

2 x 1,5

violett

7,6

28,8

82,0

247,00

31147

2 x 1,5

gold

7,6

28,8

82,0

247,00

31148

2 x 1,5

altgold

7,6

28,8

82,0

247,00

31150

3 G 1,5

blau

8,3

44,0

96,0

296,00

31151

3 G 1,5

grün

8,3

44,0

96,0

296,00

31152

3 G 1,5

braun

8,3

44,0

96,0

296,00

31153

3 G 1,5

gelb

8,3

44,0

96,0

296,00

31154

3 G 1,5

rot

8,3

44,0

96,0

296,00

31155

3 G 1,5

orange

8,3

44,0

96,0

296,00

31156

3 G 1,5

violett

8,3

44,0

96,0

296,00

31157

3 G 1,5

gold

8,3

44,0

96,0

296,00

31158

3 G 1,5

altgold

8,3

44,0

96,0

296,00

31160

4 G 1,5

blau

9,3

58,0

117,0

350,00

31161

4 G 1,5

grün

9,3

58,0

117,0

350,00

31162

4 G 1,5

braun

9,3

58,0

117,0

350,00

31163

4 G 1,5

gelb

9,3

58,0

117,0

350,00

31164

4 G 1,5

rot

9,3

58,0

117,0

350,00

31165

4 G 1,5

orange

9,3

58,0

117,0

350,00

31166

4 G 1,5

violett

9,3

58,0

117,0

350,00

31167

4 G 1,5

gold

9,3

58,0

117,0

350,00

31168

4 G 1,5

altgold

9,3

58,0

117,0

350,00

31170

5 G 1,5

blau

10,4

72,0

144,0

408,00

31171

5 G 1,5

grün

10,4

72,0

144,0

408,00

31172

5 G 1,5

braun

10,4

72,0

144,0

408,00

31173

5 G 1,5

gelb

10,4

72,0

144,0

408,00

31174

5 G 1,5

rot

10,4

72,0

144,0

408,00

31175

5 G 1,5

orange

10,4

72,0

144,0

408,00

31176

5 G 1,5

violett

10,4

72,0

144,0

408,00

31177

5 G 1,5

gold

10,4

72,0

144,0

408,00

31178

5 G 1,5

altgold

10,4

72,0

144,0

408,00

31180

2 x 2,5

blau

9,2

48,0

118,0

323,00

31181

2 x 2,5

grün

9,2

48,0

118,0

323,00

31182

2 x 2,5

braun

9,2

48,0

118,0

323,00

31183

2 x 2,5

gelb

9,2

48,0

118,0

323,00

31184

2 x 2,5

rot

9,2

48,0

118,0

323,00

31185

2 x 2,5

orange

9,2

48,0

118,0

323,00

31186

2 x 2,5

violett

9,2

48,0

118,0

323,00

31187

2 x 2,5

gold

9,2

48,0

118,0

323,00

31188

2 x 2,5

altgold

9,2

48,0

118,0

323,00

31190

3 G 2,5

blau

10,0

72,0

152,0

387,00

31191

3 G 2,5

grün

10,0

72,0

152,0

387,00

31192

3 G 2,5

braun

10,0

72,0

152,0

387,00

31193

3 G 2,5

gelb

10,0

72,0

152,0

387,00

31194

3 G 2,5

rot

10,0

72,0

152,0

387,00

31195

3 G 2,5

orange

10,0

72,0

152,0

387,00

31196

3 G 2,5

violett

10,0

72,0

152,0

387,00

31197

3 G 2,5

gold

10,0

72,0

152,0

387,00

31198

3 G 2,5

altgold

10,0

72,0

152,0

387,00

31200

4 G 2,5

blau

10,9

96,0

192,0

462,00

31201

4 G 2,5

grün

10,9

96,0

192,0

462,00

31202

4 G 2,5

braun

10,9

96,0

192,0

462,00

31203

4 G 2,5

gelb

10,9

96,0

192,0

462,00

31204

4 G 2,5

rot

10,9

96,0

192,0

462,00

31205

4 G 2,5

orange

10,9

96,0

192,0

462,00

31206

4 G 2,5

violett

10,9

96,0

192,0

462,00

31207

4 G 2,5

gold

10,9

96,0

192,0

462,00

31208

4 G 2,5

altgold

10,9

96,0

192,0

462,00

31210

5 G 2,5

blau

12,2

120,0

243,0

558,00

31211

5 G 2,5

grün

12,2

120,0

243,0

558,00

31212

5 G 2,5

braun

12,2

120,0

243,0

558,00

31213

5 G 2,5

gelb

12,2

120,0

243,0

558,00

31214

5 G 2,5

rot

12,2

120,0

243,0

558,00

31215

5 G 2,5

orange

12,2

120,0

243,0

558,00

31216

5 G 2,5

violett

12,2

120,0

243,0

558,00

31217

5 G 2,5

gold

12,2

120,0

243,0

558,00

31218

5 G 2,5

altgold

12,2

120,0

243,0

558,00

31220

2 x 4

blau

10,6

76,8

195,0

467,00

31221

2 x 4

grün

10,6

76,8

195,0

467,00

31222

2 x 4

braun

10,6

76,8

195,0

467,00

31223

2 x 4

gelb

10,6

76,8

195,0

467,00

31224

2 x 4

rot

10,6

76,8

195,0

467,00

31225

2 x 4

orange

10,6

76,8

195,0

467,00

31226

2 x 4

violett

10,6

76,8

195,0

467,00

31227

2 x 4

gold

10,6

76,8

195,0

467,00

31228

2 x 4

altgold

10,6

76,8

195,0

467,00

31230

3 G 4

blau

11,5

115,0

235,0

569,00

31231

3 G 4

grün

11,5

115,0

235,0

569,00

31232

3 G 4

braun

11,5

115,0

235,0

569,00

31233

3 G 4

gelb

11,5

115,0

235,0

569,00

31234

3 G 4

rot

11,5

115,0

235,0

569,00

31235

3 G 4

orange

11,5

115,0

235,0

569,00

31236

3 G 4

violett

11,5

115,0

235,0

569,00

31237

3 G 4

gold

11,5

115,0

235,0

569,00

31238

3 G 4

altgold

11,5

115,0

235,0

569,00

31240

4 G 4

blau

12,4

154,0

300,0

687,00

31241

4 G 4

grün

12,4

154,0

300,0

687,00

31242

4 G 4

braun

12,4

154,0

300,0

687,00

31243

4 G 4

gelb

12,4

154,0

300,0

687,00

31244

4 G 4

rot

12,4

154,0

300,0

687,00

31245

4 G 4

orange

12,4

154,0

300,0

687,00

31246

4 G 4

violett

12,4

154,0

300,0

687,00

31247

4 G 4

gold

12,4

154,0

300,0

687,00

31248

4 G 4

altgold

12,4

154,0

300,0

687,00

31250

5 G 4

blau

14,1

192,0

361,0

816,00

31251

5 G 4

grün

14,1

192,0

361,0

816,00

31252

5 G 4

braun

14,1

192,0

361,0

816,00

31253

5 G 4

gelb

14,1

192,0

361,0

816,00

31254

5 G 4

rot

14,1

192,0

361,0

816,00

31255

5 G 4

orange

14,1

192,0

361,0

816,00

31256

5 G 4

violett

14,1

192,0

361,0

816,00

31257

5 G 4

gold

14,1

192,0

361,0

816,00

31258

5 G 4

altgold

14,1

192,0

361,0

816,00
