- Code type indicates the required hexagonal clamping insert.

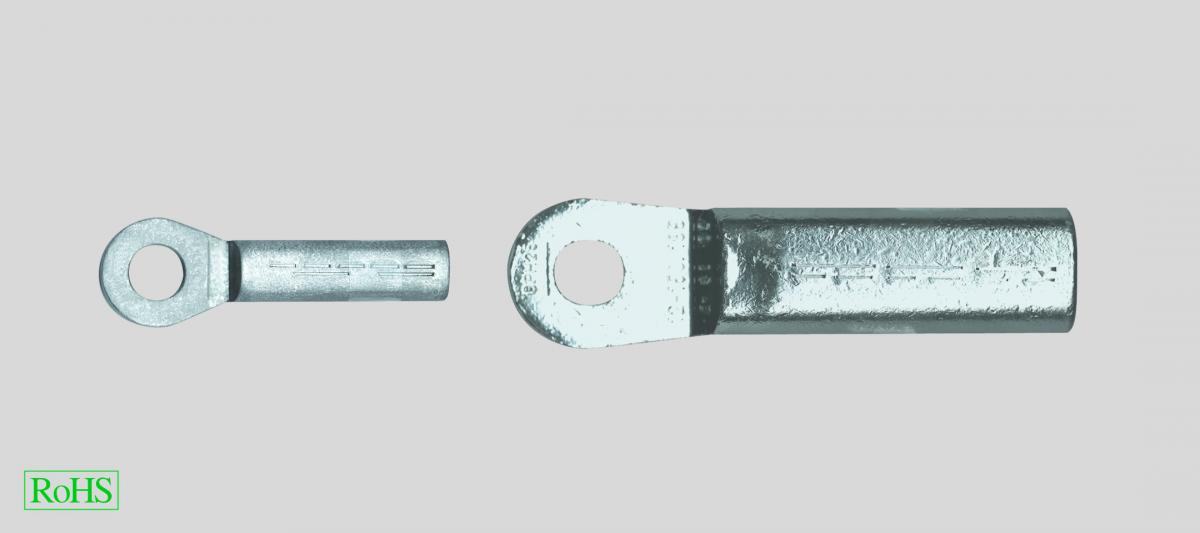

- Non-insulated, straight tubular cable lugs in eye type design made by aluminium. High definition version for reliable crimping. Designed for conductor type RM acc. to DIN 48201 and circulary reshaped conductors.
Ringform
|
Artikel-Nr. |
Typ |
Querschnitt RM/SM - SE mm² |
a mm |
d mm |
b mm |
l mm |
Kennzahl |
Gewicht kg / 1000 Stück |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
bis 500 |
501 - 1000 |
1001 - 5000 |
||||||||||
|
904695 |
KA 10-6 |
10,0 |
6,5 |
5,0 |
16,0 |
52,0 |
10,0 |
8,6 |
25 |
164,10 |
151,80 |
139,50 |
|
904696 |
KA 10-8 |
10,0 |
8,5 |
5,0 |
18,0 |
52,0 |
10,0 |
8,8 |
25 |
164,10 |
151,80 |
139,50 |
|
904697 |
KA 16-8 |
16,0 - 25,0 |
8,5 |
5,8 |
18,0 |
52,0 |
12,0 |
13,7 |
10 |
172,80 |
159,80 |
146,90 |
|
904698 |
KA 16-10 |
16,0 - 25,0 |
10,5 |
5,8 |
18,0 |
52,0 |
12,0 |
13,9 |
10 |
172,80 |
159,80 |
146,90 |
|
904699 |
KA 25-8 |
25,0 - 35,0 |
8,5 |
6,8 |
18,0 |
60,0 |
12,0 |
14,1 |
10 |
175,20 |
162,10 |
148,90 |
|
904700 |
KA 25-10 |
25,0 - 35,0 |
10,5 |
6,8 |
18,0 |
60,0 |
12,0 |
14,6 |
10 |
175,20 |
162,10 |
148,90 |
|
904701 |
KA 35-10 |
35,0 - 50,0 |
10,5 |
8,0 |
21,0 |
67,0 |
14,0 |
20,8 |
10 |
192,10 |
177,70 |
163,30 |
|
904702 |
KA 35-12 |
35,0 - 50,0 |
13,0 |
8,0 |
21,0 |
67,0 |
14,0 |
20,5 |
10 |
192,10 |
177,70 |
163,30 |
|
904703 |
KA 50-10 |
50,0 - 70,0 |
10,5 |
9,8 |
25,0 |
72,0 |
16,0 |
26,8 |
10 |
205,40 |
190,00 |
174,60 |
|
904704 |
KA 50-12 |
50,0 - 70,0 |
13,0 |
9,8 |
25,0 |
72,0 |
16,0 |
27,3 |
10 |
205,40 |
190,00 |
174,60 |
|
904705 |
KA 70-10 |
70,0 - 95,0 |
10,5 |
11,2 |
28,0 |
86,0 |
18,0 |
44,2 |
10 |
255,90 |
236,70 |
217,50 |
|
904706 |
KA 70-12 |
70,0 - 95,0 |
13,0 |
11,2 |
28,0 |
86,0 |
18,0 |
42,7 |
10 |
255,90 |
236,70 |
217,50 |
|
904707 |
KA 95-10 |
95,0 - 120,0 |
10,5 |
13,2 |
32,0 |
90,0 |
22,0 |
74,0 |
4 |
348,00 |
321,90 |
295,80 |
|
904708 |
KA 95-12 |
95,0 - 120,0 |
13,0 |
13,2 |
32,0 |
90,0 |
22,0 |
75,0 |
4 |
348,00 |
321,90 |
295,80 |
|
904709 |
KA 95-16 |
95,0 - 120,0 |
17,0 |
13,2 |
34,0 |
90,0 |
22,0 |
73,0 |
4 |
348,00 |
321,90 |
295,80 |
|
904710 |
KA 120-12 |
120,0 - 150,0 |
13,0 |
14,7 |
32,0 |
91,0 |
22,0 |
66,8 |
4 |
336,60 |
311,40 |
286,10 |
|
904711 |
KA 120-16 |
120,0 - 150,0 |
17,0 |
14,7 |
34,0 |
91,0 |
22,0 |
64,1 |
4 |
336,60 |
311,40 |
286,10 |
|
904712 |
KA 150-12 |
150,0 - 185,0 |
13,0 |
16,3 |
35,0 |
103,0 |
25,0 |
96,4 |
4 |
394,50 |
361,90 |
335,30 |
|
904713 |
KA 150-16 |
150,0 - 185,0 |
17,0 |
16,3 |
35,0 |
103,0 |
25,0 |
92,4 |
4 |
394,50 |
361,90 |
335,30 |
|
904714 |
KA 150-20 |
150,0 - 185,0 |
21,0 |
16,3 |
41,0 |
103,0 |
25,0 |
94,0 |
4 |
394,50 |
361,90 |
335,30 |
|
904715 |
KA 185-12 |
185,0 - 240,0 |
13,0 |
18,3 |
40,0 |
106,0 |
28,0 |
126,1 |
1 |
505,40 |
467,50 |
429,60 |
|
904716 |
KA 185-16 |
185,0 - 240,0 |
17,0 |
18,3 |
40,0 |
106,0 |
28,0 |
119,2 |
1 |
505,40 |
467,50 |
429,60 |
|
904717 |
KA 185-20 |
185,0 - 240,0 |
21,0 |
18,3 |
40,0 |
106,0 |
28,0 |
131,0 |
1 |
505,40 |
467,50 |
429,60 |
|
904718 |
KA 240-12 |
240,0 - 300,0 |
13,0 |
21,0 |
45,0 |
116,0 |
32,0 |
183,0 |
1 |
641,50 |
593,40 |
545,30 |
|
904719 |
KA 240-16 |
240,0 - 300,0 |
17,0 |
21,0 |
45,0 |
116,0 |
32,0 |
176,0 |
1 |
641,50 |
593,40 |
545,30 |
|
904720 |
KA 240-20 |
240,0 - 300,0 |
21,0 |
21,0 |
45,0 |
116,0 |
32,0 |
173,0 |
1 |
641,50 |
593,40 |
545,30 |
|
904721 |
KA 300-16 |
300,0 |
17,0 |
23,3 |
49,0 |
124,0 |
34,0 |
175,0 |
1 |
954,40 |
882,80 |
811,20 |
|
904722 |
KA 300-20 |
300,0 |
21,0 |
23,3 |
49,0 |
124,0 |
34,0 |
173,0 |
1 |
954,40 |
882,80 |
811,20 |
