- Without inspection hole
- Also available in angulated version (45° and 90°).

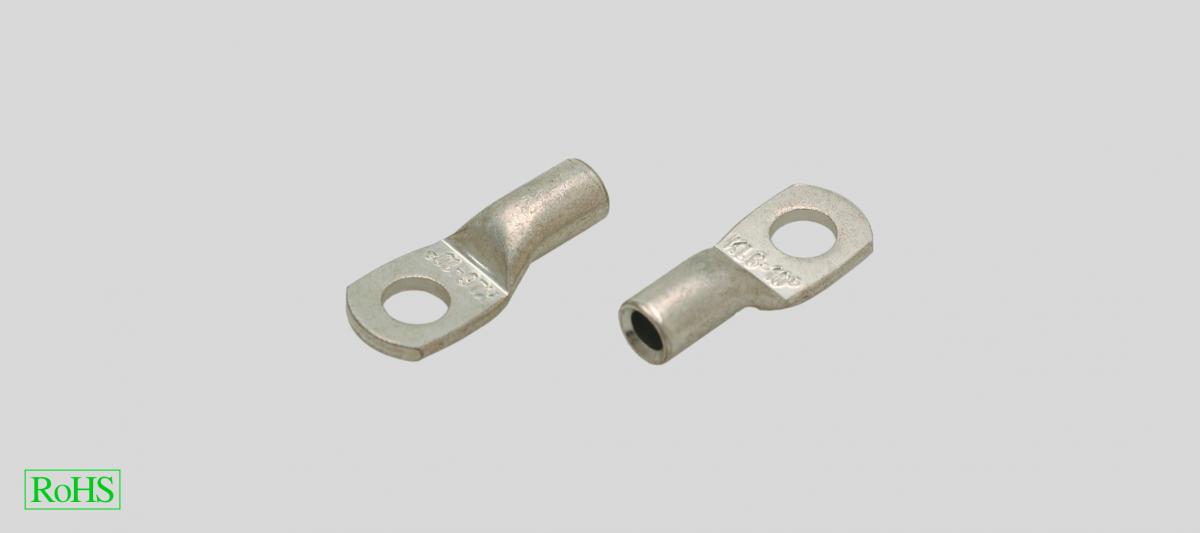

- Non-insulated tubular cable lugs in eye type design. High definition version for reliable crimping.
Ringform
|
Artikel-Nr. |
Typ |
Querschnitt mm² |
a mm |
d mm |
b mm |
l mm |
Kennzahl |
Gewicht kg / 1000 Stück |
VPE |
Netto EUR/100 Stück bei Abnahme von |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
bis 500 |
501 - 1000 |
1001 - 5000 |
||||||||||
|
904517 |
K2 6-5 |
6,0 |
5,5 |
3,5 |
10,0 |
21,0 |
- |
5,0 |
100 |
28,20 |
26,10 |
24,00 |
|
904518 |
K2 6-6 |
6,0 |
6,5 |
3,5 |
12,0 |
21,0 |
- |
4,7 |
100 |
26,40 |
24,40 |
22,40 |
|
904519 |
K2 6-8 |
6,0 |
8,5 |
3,5 |
15,0 |
23,0 |
- |
5,4 |
100 |
29,10 |
26,90 |
24,70 |
|
904520 |
K2 6-10 |
6,0 |
10,5 |
3,5 |
17,0 |
25,0 |
- |
5,9 |
100 |
28,20 |
26,10 |
24,00 |
|
904521 |
K2 6-12 |
6,0 |
13,0 |
3,5 |
19,0 |
28,0 |
- |
6,3 |
100 |
30,40 |
28,10 |
25,80 |
|
904522 |
K2 10-5 |
10,0 |
5,5 |
4,5 |
12,0 |
22,0 |
- |
5,0 |
100 |
36,10 |
33,40 |
30,70 |
|
904523 |
K2 10-6 |
10,0 |
6,5 |
4,5 |
12,0 |
22,0 |
- |
4,9 |
100 |
32,80 |
30,30 |
27,90 |
|
904524 |
K2 10-8 |
10,0 |
8,5 |
4,5 |
15,0 |
25,0 |
- |
5,8 |
100 |
36,10 |
33,40 |
30,70 |
|
904525 |
K2 10-10 |
10,0 |
10,5 |
4,5 |
17,0 |
27,0 |
- |
6,2 |
100 |
36,10 |
33,40 |
30,70 |
|
904526 |
K2 10-12 |
10,0 |
13,0 |
4,5 |
19,0 |
29,0 |
- |
6,4 |
100 |
42,10 |
38,90 |
35,80 |
|
904527 |
K2 16-5 |
16,0 |
5,5 |
5,5 |
12,0 |
26,0 |
- |
8,4 |
100 |
46,60 |
43,10 |
39,60 |
|
904528 |
K2 16-6 |
16,0 |
6,5 |
5,5 |
12,0 |
27,0 |
- |
8,6 |
100 |
46,60 |
43,10 |
39,60 |
|
904529 |
K2 16-8 |
16,0 |
8,5 |
5,5 |
15,0 |
29,0 |
- |
9,3 |
100 |
42,20 |
39,00 |
35,90 |
|
904530 |
K2 16-10 |
16,0 |
10,5 |
5,5 |
17,0 |
31,0 |
- |
9,9 |
100 |
51,20 |
47,40 |
43,50 |
|
904531 |
K2 16-12 |
16,0 |
13,0 |
5,5 |
19,0 |
33,0 |
- |
10,2 |
100 |
53,60 |
49,60 |
45,60 |
|
904532 |
K2 25-5 |
25,0 |
5,5 |
7,0 |
14,0 |
30,0 |
- |
12,2 |
25 |
73,10 |
67,60 |
62,10 |
|
904533 |
K2 25-6 |
25,0 |
6,5 |
7,0 |
14,0 |
30,0 |
- |
12,0 |
100 |
73,10 |
67,60 |
62,10 |
|
904534 |
K2 25-8 |
25,0 |
8,5 |
7,0 |
16,0 |
32,0 |
- |
13,1 |
100 |
66,40 |
61,40 |
56,40 |
|
904535 |
K2 25-10 |
25,0 |
10,5 |
7,0 |
18,0 |
34,0 |
- |
15,7 |
100 |
73,10 |
67,60 |
62,10 |
|
904536 |
K2 25-12 |
25,0 |
13,0 |
7,0 |
19,0 |
35,0 |
- |
13,9 |
25 |
76,90 |
71,10 |
65,40 |
|
904537 |
K2 25-14 |
25,0 |
15,0 |
7,0 |
21,0 |
38,0 |
- |
14,9 |
25 |
80,70 |
74,60 |
68,60 |
|
904538 |
K2 35-6 |
35,0 |
6,5 |
8,5 |
17,0 |
32,0 |
- |
18,5 |
100 |
100,00 |
92,50 |
85,00 |
|
904539 |
K2 35-8 |
35,0 |
8,5 |
8,5 |
17,0 |
34,0 |
- |
20,0 |
100 |
90,80 |
84,00 |
77,20 |
|
904540 |
K2 35-10 |
35,0 |
10,5 |
8,5 |
19,0 |
37,0 |
- |
21,3 |
100 |
100,00 |
92,50 |
85,00 |
|
904541 |
K2 35-12 |
35,0 |
13,0 |
8,5 |
21,0 |
38,0 |
- |
21,2 |
100 |
100,00 |
92,50 |
85,00 |
|
904542 |
K2 35-14 |
35,0 |
15,0 |
8,5 |
21,0 |
40,0 |
- |
21,8 |
25 |
104,00 |
96,20 |
88,40 |
|
904543 |
K2 35-16 |
35,0 |
17,0 |
8,5 |
26,0 |
42,0 |
- |
22,4 |
25 |
104,00 |
96,20 |
88,40 |
|
904544 |
K2 50-6 |
50,0 |
6,5 |
10,0 |
20,0 |
37,0 |
- |
30,0 |
25 |
143,10 |
132,40 |
121,60 |
|
904545 |
K2 50-8 |
50,0 |
8,5 |
10,0 |
20,0 |
37,0 |
- |
29,3 |
50 |
143,10 |
132,40 |
121,60 |
|
904546 |
K2 50-10 |
50,0 |
10,5 |
10,0 |
20,0 |
39,0 |
- |
30,8 |
50 |
130,70 |
120,90 |
111,10 |
|
904547 |
K2 50-12 |
50,0 |
13,0 |
10,0 |
23,0 |
43,0 |
- |
32,3 |
50 |
143,10 |
132,40 |
121,60 |
|
904548 |
K2 50-14 |
50,0 |
15,0 |
10,0 |
23,0 |
45,0 |
- |
33,2 |
25 |
150,00 |
138,80 |
127,50 |
|
904549 |
K2 50-16 |
50,0 |
17,0 |
10,0 |
28,0 |
46,0 |
- |
33,8 |
25 |
150,00 |
138,80 |
127,50 |
|
904550 |
K2 50-20 |
50,0 |
21,0 |
10,0 |
30,0 |
48,0 |
- |
34,6 |
25 |
150,00 |
138,80 |
127,50 |
|
904551 |
K2 70-6 |
70,0 |
6,5 |
12,0 |
23,0 |
43,0 |
- |
44,9 |
25 |
166,30 |
153,80 |
141,40 |
|
904552 |
K2 70-8 |
70,0 |
8,5 |
12,0 |
23,0 |
43,0 |
- |
43,8 |
50 |
166,30 |
153,80 |
141,40 |
|
904553 |
K2 70-10 |
70,0 |
10,5 |
12,0 |
23,0 |
44,0 |
- |
45,4 |
50 |
151,50 |
140,10 |
128,80 |
|
904554 |
K2 70-12 |
70,0 |
13,0 |
12,0 |
23,0 |
46,0 |
- |
46,3 |
50 |
166,30 |
153,80 |
141,40 |
|
904555 |
K2 70-14 |
70,0 |
15,0 |
12,0 |
23,0 |
48,0 |
- |
47,6 |
25 |
168,80 |
156,10 |
143,50 |
|
904556 |
K2 70-16 |
70,0 |
17,0 |
12,0 |
28,0 |
50,0 |
- |
42,4 |
25 |
168,80 |
156,10 |
143,50 |
|
904557 |
K2 70-20 |
70,0 |
21,0 |
12,0 |
30,0 |
53,0 |
- |
50,9 |
25 |
177,70 |
164,40 |
151,00 |
|
904558 |
K2 95-8 |
95,0 |
8,5 |
13,5 |
26,0 |
48,0 |
- |
54,4 |
25 |
191,60 |
177,20 |
162,90 |
|
904559 |
K2 95-10 |
95,0 |
10,5 |
13,5 |
26,0 |
48,0 |
- |
54,0 |
50 |
191,60 |
177,20 |
162,90 |
|
904560 |
K2 95-12 |
95,0 |
13,0 |
13,5 |
26,0 |
49,0 |
- |
55,6 |
50 |
174,20 |
161,10 |
148,10 |
|
904561 |
K2 95-14 |
95,0 |
15,0 |
13,5 |
26,0 |
51,0 |
- |
56,2 |
25 |
191,60 |
177,20 |
162,90 |
|
904562 |
K2 95-16 |
95,0 |
17,0 |
13,5 |
28,0 |
54,0 |
- |
58,2 |
50 |
191,60 |
177,20 |
162,90 |
|
904563 |
K2 95-20 |
95,0 |
21,0 |
13,5 |
36,0 |
60,0 |
- |
67,1 |
25 |
200,00 |
185,00 |
170,00 |
|
904564 |
K2 120-8 |
120,0 |
8,5 |
15,0 |
28,0 |
51,0 |
- |
67,2 |
25 |
244,50 |
226,20 |
207,80 |
|
904565 |
K2 120-10 |
120,0 |
10,5 |
15,0 |
28,0 |
51,0 |
- |
65,7 |
50 |
244,50 |
226,20 |
207,80 |
|
904566 |
K2 120-12 |
120,0 |
13,0 |
15,0 |
28,0 |
51,0 |
- |
63,8 |
50 |
223,20 |
206,50 |
189,70 |
|
904567 |
K2 120-14 |
120,0 |
15,0 |
15,0 |
28,0 |
52,0 |
- |
64,5 |
25 |
244,50 |
226,20 |
207,80 |
|
904568 |
K2 120-16 |
120,0 |
17,0 |
15,0 |
30,0 |
54,0 |
- |
65,1 |
50 |
244,50 |
226,20 |
207,80 |
|
904569 |
K2 120-20 |
120,0 |
21,0 |
15,0 |
36,0 |
63,0 |
- |
77,4 |
25 |
253,40 |
234,40 |
215,40 |
|
904570 |
K2 150-8 |
150,0 |
8,5 |
16,5 |
31,0 |
56,0 |
- |
77,8 |
10 |
306,40 |
283,40 |
260,40 |
|
904571 |
K2 150-10 |
150,0 |
10,5 |
16,5 |
31,0 |
56,0 |
- |
76,2 |
10 |
306,40 |
283,40 |
260,40 |
|
904572 |
K2 150-12 |
150,0 |
13,0 |
16,5 |
31,0 |
57,0 |
- |
77,3 |
25 |
278,70 |
257,80 |
236,90 |
|
904573 |
K2 150-14 |
150,0 |
15,0 |
16,5 |
31,0 |
57,0 |
- |
76,4 |
10 |
306,40 |
283,40 |
260,40 |
|
904574 |
K2 150-16 |
150,0 |
17,0 |
16,5 |
31,0 |
58,0 |
- |
75,3 |
10 |
306,40 |
283,40 |
260,40 |
|
904575 |
K2 150-20 |
150,0 |
21,0 |
16,5 |
36,0 |
66,0 |
- |
88,0 |
10 |
319,30 |
295,40 |
271,40 |
|
904576 |
K2 185-10 |
185,0 |
10,5 |
19,0 |
35,0 |
65,0 |
- |
117,5 |
10 |
346,00 |
320,10 |
294,10 |
|
904577 |
K2 185-12 |
185,0 |
13,0 |
19,0 |
35,0 |
65,0 |
- |
118,2 |
10 |
346,00 |
320,10 |
294,10 |
|
904578 |
K2 185-14 |
185,0 |
15,0 |
19,0 |
35,0 |
65,0 |
- |
113,9 |
10 |
346,00 |
320,10 |
294,10 |
|
904579 |
K2 185-16 |
185,0 |
17,0 |
19,0 |
35,0 |
65,0 |
- |
112,4 |
25 |
339,10 |
313,70 |
288,20 |
|
904580 |
K2 185-20 |
185,0 |
21,0 |
19,0 |
39,0 |
69,0 |
- |
120,0 |
10 |
346,00 |
320,10 |
294,10 |
|
904581 |
K2 240-10 |
240,0 |
10,5 |
21,0 |
39,0 |
72,0 |
- |
147,2 |
10 |
435,10 |
402,50 |
369,80 |
|
904582 |
K2 240-12 |
240,0 |
13,0 |
21,0 |
39,0 |
72,0 |
- |
145,5 |
10 |
435,10 |
402,50 |
369,80 |
|
904583 |
K2 240-14 |
240,0 |
15,0 |
21,0 |
39,0 |
72,0 |
- |
142,4 |
10 |
435,10 |
402,50 |
369,80 |
|
904584 |
K2 240-16 |
240,0 |
17,0 |
21,0 |
39,0 |
72,0 |
- |
140,9 |
25 |
405,40 |
375,00 |
344,60 |
|
904585 |
K2 240-20 |
240,0 |
21,0 |
21,0 |
39,0 |
72,0 |
- |
136,0 |
10 |
435,10 |
402,50 |
369,80 |
|
904586 |
K2 300-12 |
300,0 |
13,0 |
23,5 |
43,0 |
87,0 |
- |
233,3 |
5 |
660,80 |
611,20 |
561,70 |
|
904587 |
K2 300-14 |
300,0 |
15,0 |
23,5 |
43,0 |
87,0 |
- |
231,4 |
5 |
660,80 |
611,20 |
561,70 |
|
904588 |
K2 300-16 |
300,0 |
17,0 |
23,5 |
43,0 |
87,0 |
- |
227,4 |
5 |
660,80 |
611,20 |
561,70 |
|
904589 |
K2 300-20 |
300,0 |
21,0 |
23,5 |
43,0 |
87,0 |
- |
221,9 |
5 |
591,00 |
546,70 |
502,40 |
|
904590 |
K2 400-12 |
400,0 |
13,0 |
27,0 |
49,0 |
90,0 |
- |
324,1 |
5 |
1203,80 |
1113,50 |
1023,20 |
|
904591 |
K2 400-14 |
400,0 |
15,0 |
27,0 |
49,0 |
90,0 |
- |
322,4 |
5 |
1203,80 |
1113,50 |
1023,20 |
|
904592 |
K2 400-16 |
400,0 |
17,0 |
27,0 |
49,0 |
90,0 |
- |
319,8 |
5 |
1203,80 |
1113,50 |
1023,20 |
|
904593 |
K2 400-20 |
400,0 |
21,0 |
27,0 |
49,0 |
90,0 |
- |
314,1 |
5 |
1099,90 |
1017,40 |
934,90 |
